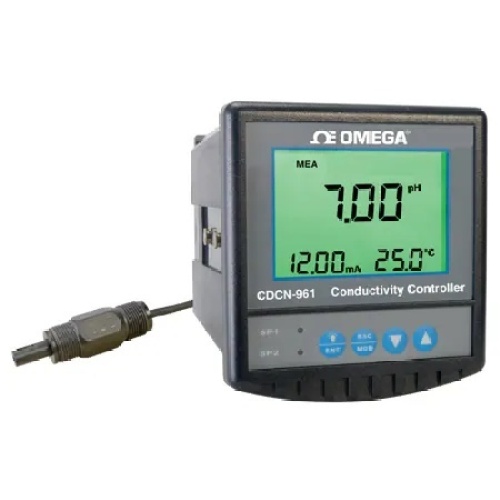

Omega CDCN-961 Water Quality controller
Normally In Stock
Code: 801749
Omega CDCN-961 Water Quality controller
Condition: New
Usually ships Same Day or Next Day$2469.98
Sale Price
$2058.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Conductivity/Resistivity/TDS Controller, 220 Vac, 0 µS/cm to 3 µS/cm, 30 µS/cm, 300 µS/cm, 4 mA to 20 mA, Relay, RS485, Each
Specifications
Manufacturer
Omega Engineering
Component
Water Quality Controller
Features
Monitors conductivity, resistivity and TDS in process solutions and water applications.
Menu-Driven Programming
NEMA 4X (IP65) Protection
Programmable High/Low, and Alarm Relays
Accuracy± 1 %
Cable Length5 m
Calibration NoteLine Resistance Compensation: 0.0 to 20.0 Ω
Cell ConstantK = 0.01, 0.1, 1, 10, Conductivity Electrode: K=1.0
Conductivity Measurement0.000 to 3.000, 30.00, 300.0 μS/cm
Cutout Dimensions93.5 x 93.5 mm
Data InterfaceRS485
Diameter136 mm
Display TypeLCD
EMC StandardEN 50081-1, EN 50082-1
Enclosure RatingsIP65, NEMA Type 4X
Frequency1 to 999 hours 1 to 999 seconds(Frequency of Cleaning Time)
Height108 mm
Impedance600 Ω
MaterialsGraphite
Measurement Range NoteConductivity: 0.000 to 3.000, 30.00, 300.0 μS/cm
Resistivity: 0.3 to 30.0 MΩcm
TDS: 0.000 to 3.000, 30.00, 300.0 ppm,
Test Range: 0 to 50.0 mS/cm
Number of Relays3
Operating Humidity10 to 95% RH
Operating Temperature, Max50 °C
Operating Temperature, Min-10 °C
Output Detail4 to 20 mA/600 Ω
Process Temperature, Max-0.5 °C
Process Temperature, Min130 °C
Relay Note3 SPST/250V 1A, Control Hysteresis Band: 0.1 to 10% FS
Resistivity Measurement Range0.3 to 30.0 MΩcm
Resolution0.001/0.01/0.1 μS/cm
Temperature Accuracy± 0.5 °C
Temperature Resolution0.1 °C
Temperature Sensor Type1000 Ω RTD
Weight1650 g
Width100 mm
