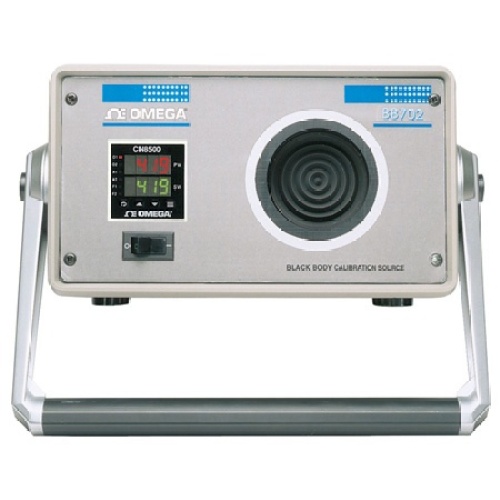

Omega BB702 Temperature Calibrator
Normally In Stock
Code: 801724
Omega BB702 Temperature Calibrator
Condition: New
Usually ships Same Day or Next Day$4933.07
Sale Price
$4110.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Blackbody Calibrator, Infrared, High Performance, ± 0.5 °C (0.9 °F), 0.25 % rdg Accuracy, 10 °C to 215 °C (20 °F to 420 °F), 115 Vac, RS 232, Portable, BB702 Series, Each
Specifications
Component
Temperature Calibrator
Manufacturer
Omega Engineering
Features
Model BB702 Calibrates from Ambient +10 to 215°C (Ambient +20 to 420°F)
Portable Rugged Design
Calibrates Infrared Pyrometers Quickly and Accurately
Built in Digital PID Autotune Temperature Controller with Temperature Readout
Accuracy± 0.5 °C
Accuracy Detail±0.5°C, ±0.25% rdg (±0.9°F, ±0.25% rdg)
Additional Features 1Portable
Calibration Reference SensorPlatinum RTD, class A, alpha = 0.00385
Cavity Emissivity0.95
Control ModePID Control
Data InterfaceRS232
Display TypeLED
Frequency50/60 Hz
Height152 mm
Installation CategoryII
Internal Sensing ElementPlatinum RTD, class A, alpha = 0.00385
Length280 mm
Operating Temperature, Max45 °C
Operating Temperature, Min5 °C
Power Consumption75 W
Process Temperature, Max215 °C
Process Temperature, Min10 °C
Stability±0.1°C
Target Size63.5
Warm Up Time12 min
Warm-Up Time Note12 min from ambient to 204°C (400°F)
Width305 mm
