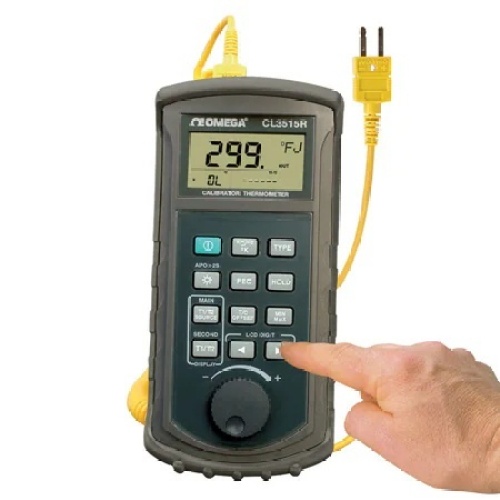

Omega CL3515R Handheld Calibrator
Normally In Stock
Code: 801656
Omega CL3515R Handheld Calibrator
Condition: New
Usually ships Same Day or Next Day$694.82
Sale Price
$579.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Temperature Calibrator & Thermometer, ± 0.05 % rdg + 0.5 °C (0.9 °F) Accuracy, Supports K, J, E, T, R, S, N, L, U, B, C Types, USB & RS232, 17.5 hours, CL3515R Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Handheld Calibrator
Features
USB and RS232 Interface with Windows Software
11 Types of Thermocouples: K, J, T, E, R, S, N, L, U, B, and C (in °C, °F, or K), and mV Signal Output
NIST-Traceable Calibration Certificate with 7 Data Points (Included)
2 Channels for Thermocouple Temperature Measurement (T1 and T2) with Offset Adjustment
Accuracy± 0.05 %
Accuracy Detail± (0.05% of reading + 0.5 °C)
Additional Features 1NIST Calibration Certificate
Battery life17 hr
Display TypeLCD
Display Type Note4-digit LCD with maxreading of 19999
Electrical ConnectionMiniature Female Thermocouple Connector
Height192 mm
Length52.5 mm
Milli Volt Accuracy± 0.025% + 1 digit
Milli Volt Resolution10 µV
Millivolt Range-25 to 75 mV
Number of Channels2
Operating Temperature, Min0 °C
Relative Humidity, Max0.7
Relative Humidity, Min0%
Storage Temperature, Max60 °C
Storage Temperature, Min-20 °C
Storage Temperature Note-20 to 60°C (-4 to 140°F ),<70%RH
Supply Voltage9 Vdc
Temperature Coefficient0.1 times the applicable accuracy specification per °C from 0 to 18°C and 28 to 50°C (32 to 64°F and 82 to 122°F)
Temperature Measurement, Max2316 °C
Temperature Measurement, Min0 °C
Thermocouple Simulation Resolution RangeThermocouple Simulation Range: Resolution: 0.1° (1° for R/S/B/C)
Accuracy*: ± (0.3°C + 10 µV)
Thermocouple TypeJ, K, T, E, R, S, B, C, N, L, U
Type of RTD SignalNone
Weight320 g
Width91 mm
