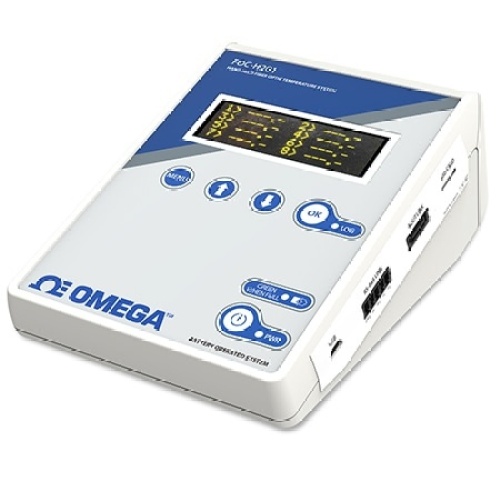

Omega FOM-L201-6 6-CHNL, -80 TO 300°C FIB OP MNTR
Normally In Stock
Code: 801054
Omega FOM-L201-6 6-CHNL, -80 TO 300°C FIB OP MNTR
Condition: New
Usually ships Same Day or Next Day$11262.08
Sale Price
$9385.07
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Fiber Optic Monitor, Portable, 6-CH, -80 °C to 300 °C (-112 °F to 572 °F), ± 1 °C (1.8 °F) Accuracy, 0.1 °C Resolution, ST Connector, 5 V, USB Powered, FOM Series, Each
Specifications
Manufacturer
Omega Engineering
(Instrument-Sensor) Temperature Range
-80 °C - 300 °C
Component
Fiber Optic Monitor
Features
Temperature ranges from -80°C to 300°C
Temperature monitors up to 8 channels
Accuracy ± 1.0 °C (+/- 0.2 °C in relative temperature)
Logging capabilities available through USB connectivity
Accuracy± 1 °C (± 1.8 °F)
Accuracy Detail± 1.0 °C (+/- 0.2 °C in relative temperature)
Data InterfaceRS485, USB
Data Interface NoteRS-485 and USB output with Modbus
Electrical ConnectionST Connector
Height2.7 in
Length7.1 in
Memory2 TB
Operating Temperature, Max55 °C
Operating Temperature, Min-40 °C
Output DetailOptional external module (4-20 mA and 0-10 V, software selectable), with 8 programmable outputs
Output SignalCurrent
Portability OptionRechargeable battery (FOM-H201 version)
Probe CompatibilityAll Omega fiber optic probes, most competitive GaAs probes
Process Temperature, Max300 °C
Process Temperature, Min-80 °C
Repeatability0.2°C
Resolution0.1 °C
Response Time, Max0.5 sec
Response Time, Min0.2 sec
Response Time NoteTypically, 0.2 to 0.5 seconds per channel
Supply Voltage5 Vdc
Width4.9 in
