Code: 791138
Omega F2222-1000-1/3B-100 2.2X2.2MM 1000 OHM 100/PK 1/3B
Normally In Stock
Omega F2222-1000-1/3B-100 2.2X2.2MM 1000 OHM 100/PK 1/3B
Condition: New
Usually ships Same Day or Next Day$880.27
Sale Price
$733.56
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

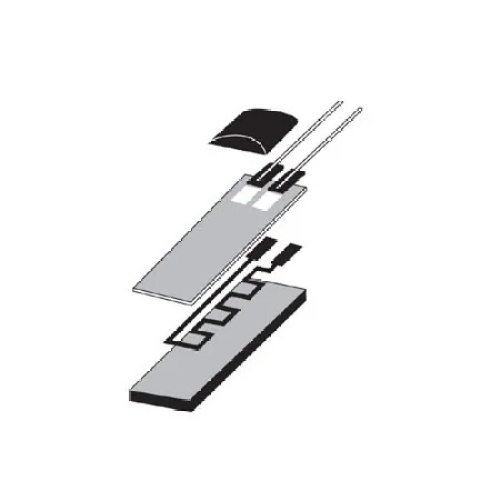

Platinum RTD Element, OMEGAFILM, Thin Film, Flat Profile, 0 °C to 100 °C, 1000 Ω, Class 1/3B Accuracy, 2 Wires, 2.2 mm x 2.2 mm x 0.9mm (LxWxT), 10 mm, F Series, Pack of 100
Specifications
Manufacturer
Omega Engineering
(Instrument-Sensor) Type
RTD
(Instrument-Sensor) Temperature Range
0 °C - 100 °C
Component
RTD Wire Sensor
Features
Sold in Packs of 100
Flat, Small Profile
Specification DIN EN 60751 (According to IEC 751)
Temperature Range -70 to 500°C (-94 to 932°F)
Insulation Resistance> 10 MΩ
Insulation Resistance Note>10 MΩ @ 20°C
>1 MΩ @ 500°C
Number of Wires2
Response Time, Air4.0 sec @ 50%
12.0 sec @ 90%
Response Time NoteResponse Time Water Current (v=0.4 m/s)
t0.5 = 0.2 s
t0.9 = 0.4 s Air Stream
(v = 1 m/s) t0.5 = 4.0 s
t0.9 = 12.0 s
Response Time, Water0.2 sec @ 50%
0.4 sec @ 90%
Self Heating Effect0.4 K/mW @ 0°C
Sensor Height0.8 mm
Shock Resistance100 g Acceleration with 8 ms Half Sine Wave
Temperature Coefficient0.00385Ω/Ω/°C
Temperature Sensor TypeRTD
Vibration Resistance10 to 2000 Hz sweep rate, acceleration 40g
Wire Diameter0.2 mm
Wire Length10 mm
