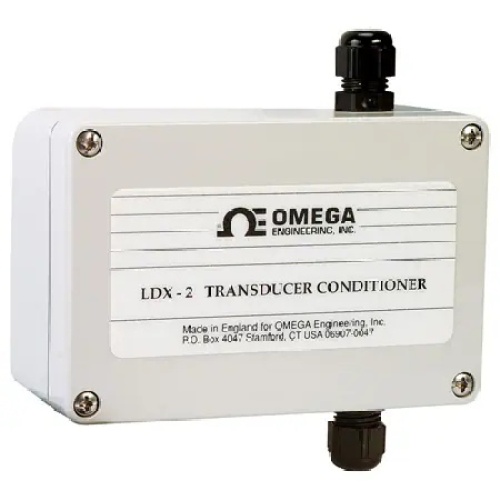

Omega LDX-2 Signal Conditioner
Normally In Stock
Code: 804373
Omega LDX-2 Signal Conditioner
Condition: New
Usually ships Same Day or Next Day$1094.69
Sale Price
$912.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Omega LDX-2 Signal Conditioner
Specifications
Conditioner Output Signal Range
4-20 Ma
Component
Signal Conditioner
Manufacturer
Omega Engineering
Conditioner Supply Voltage
13-48 Vdc
Conditioner Input Signal Type
Thermocouple
Features
Accuracy± 0.02 %
Approvals
CE
Electrical Output
4 to 20 mA
Enclosure Ratings
IP65, NEMA Type 12
Gain Range
3.5 to 1 switched, 5 to 1 adjustable
Height
120.65 mm
Input Electrical Connection
Screw terminals
access through 2 cable ports for wires 1 to 5 mm (0.04 to 0.2") diameter
Input Noise
0 to 1.5 Hz: 1.4 µVRMS (RTI)
Input Range
30 to 530 mV/V
Input Type
Voltage
Length
54.86 mm
Mounting
Through holes in base by 2 screws and nuts, can be mounted to DIN 46277-1 rail
Non-Linearity
Better than 0.02%
Number Of Wires
2, 3
Operating Temperature, Max
70 °C
Operating Temperature, Min
0 °C
Output Detail
Output Current: 4 to 20 mA 2-wire or 0 to 20 mA 3-wire. Output Ripple:<50 µA p-p @ 10 kHz Output Filter: Cutoff frequency -3 dB @ 25 Hz second-order linearity: <0.02%
Protection
Oscillator Protection: Open and short circuit protected, Output Protection: Open and short circuit protected, Supply Protection: Reverse polarity protected
Sensitivity
Transducer : 30 to 530 mV/V
Sensor Excitation
0.9 Vrms @ 5 kHz nominal, 13 kHz switchable
Storage Temperature, Max
80 °C
Storage Temperature, Min
-40 °C
Supply Power Type
DC
Supply Voltage
13 to 48 Vdc, up to 30 mA
Temperature Coefficient
Zero: Better than 0.01% FS/°C
Gain: Better than 0.01% FS/°C
Weight
220 g
Width
80 mm
