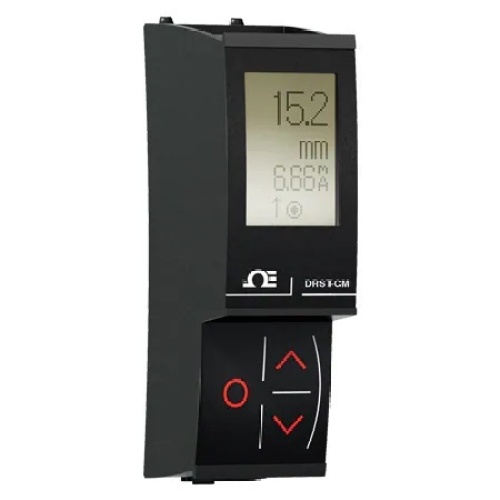

Omega DRST-CM Accessory - Communication enabler and Pr
Normally In Stock
Code: 790083
Omega DRST-CM Accessory - Communication enabler and Pr
Condition: New
Usually ships Same Day or Next Day$287.77
Sale Price
$239.81
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Communication Programmer with RS-485, Snap Front Mount, Programming Display for DRST-AC, DRST-DC, DRST-UN, DRST-UR, Each
Specifications
Manufacturer
Omega Engineering
Component
Communication Programmer
Features
Programming Display for DRST-AC, DRST-DC, DRST-UN, DRST-UR
Modbus Protocol Interface Over RS485
Monitor Process Value From the Built-In Display
High 2.5 kV Isolation to Host Unit
Approvals NoteEMC:2014/30/EU, LVD:2014/35/EU, EAC:TR-CU 020/2011
Data InterfaceRS485, Modbus RTU
Electrical ConnectionRJ45
EMC Immunity NoteNAMUR NE21, A criterion, burst: No loss of communication
Enclosure RatingsIP20
Height73.2 mm
InstallationPollution degree 2 and measurement/overvoltage category II
IsolationIsolation voltage, test/working :2.5 kVAC / 250 VAC reinforced isolation
Length26.5 mm
Noise Calibration>60 dB
Operating Temperature, Max60 °C
Operating Temperature, Min-20 °C
Power Consumptionmax 0.15 W
Relative Humidity<95% RH
Response Time< 20 ms
Response Time NoteResponse delay: 0…1000 ms
Data rates, baud: 2400, 4800, 9600, 19200,38400, 57600, 115200
Automatic baudrate detection: Yes - can be configured ON or OFF
Parity: Even, Odd, None
Stop bit(s): 1 or 2
Digital addressing: 1...247
Response delay: 0...1000 ms
Storage Temperature, Max85 °C
Storage Temperature, Min-20 °C
Update Rate> 50 Hz
Weight30 g
Width23.3 mm
