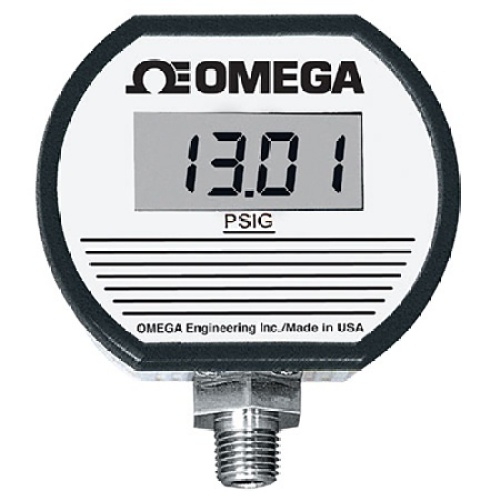

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

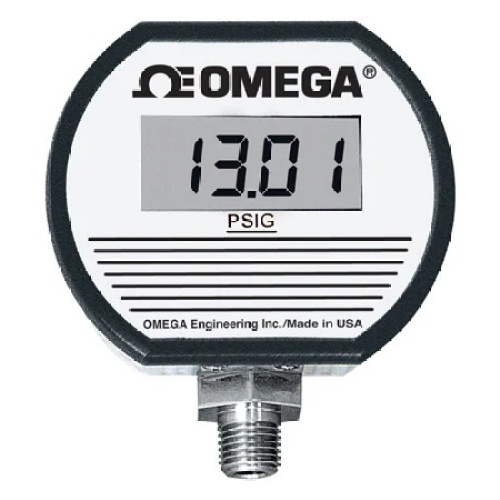

Omega DPG1000ADA-300G-1N AC/DC POWER DUAL ALARM 300PSIG
Normally In Stock
Code: 784080
Omega DPG1000ADA-300G-1N AC/DC POWER DUAL ALARM 300PSIG
Condition: New
Usually ships Same Day or Next Day$1293.83
Sale Price
$1078.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Digital Pressure Gauge, Alarm, Analog Output, Gauge, 0 psi to 300 psi, ± 0.25 %, 1/4 " NPT Male, 4 Digit, AC/DC Powered, SPDT 1 A 24 Vdc/0.5 Vac, Hi/Lo Normal Action, DPG1000ADA Series, Each
Specifications
Component
Pressure Gauge
Manufacturer
Omega Engineering
Features
AC or DC Powered with Dual Alarms
DC Powered with Dual Alarms and Analog Output
Ranges between 15 psi and 3000 psi
Normal or Reverse Acting Alarms
Accuracy Class0.1% to 0.25%
Accuracy Detail±0.25% FSO or better, ±1 least-significant digit (includes linearity, hysteresis, repeatability)
Hysteresis: 1% of FSO, standard
Alarm IndicationRed LED, Green LED
Cable Length0.9 m
Control OutputHi/Lo Normal Action
Controls and LocationDisplay zero/ span, non-interactive, ±15% range
setpoint 1 and setpoint 2, 0 to 100% range
top-accessible, multiturn potentiometers
Electrical ConnectionCable
Electrical Output NoteDual form “C” (SPDT) relay contacts
individual setpoint 1 and setpoint 2 settings via top-accessible multiturn potentiometers
high/low alarm configuration standard, others available
relay contacts rated 1 A/24 Vdc, 0.5 A/115 Vac, non-inductive
Test Function: Front-panel TEST button, when depressed, toggles both SP1 and SP2 alarm status, independent of pressure input, to allow testing of system operation
Number of Digits4
Pressure Accuracy± 0.25 %
Response Time100 ms
Sensor TypePrecision oil-filled silicon
Supply Power NoteAny AC source of 8 to 24 Vac, 50/60 Hz, or any DC source of 9 to 32 Vdc, 1.0 W maximum
optional wall-mount power supply available to operate on 115 Vac (DPG1000-PS)
Supply Voltage8 to 24 Vac, 9 to 32 Vdc
Wire Gauge22 AWG
