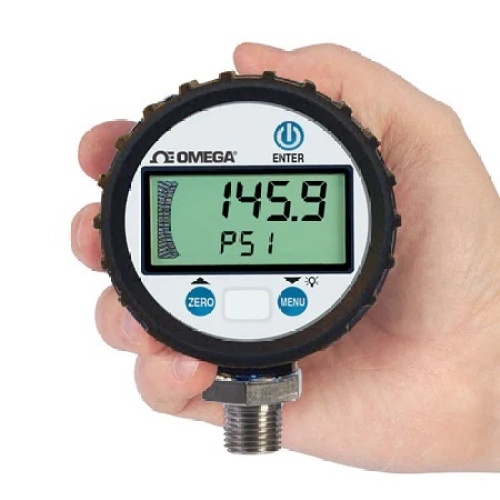

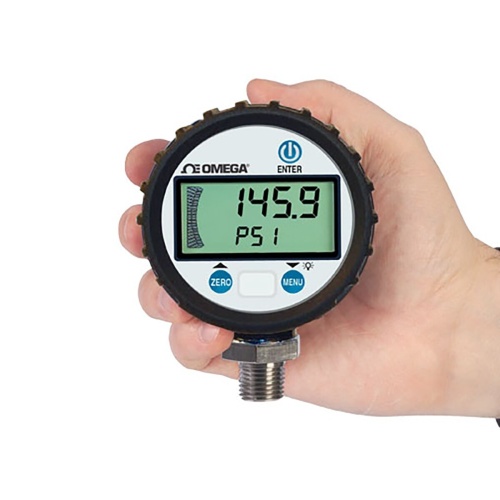

0.25% Full Scale Terminal Point Accuracy

5 Digit LCD Display with Large 12.2 mm (0.48') Digits

20 Segment Bar Graph Display

User-Selectable Engineering Units

Accuracy Class0.1% to 0.25%

Accuracy Detail0.25% FS terminal point (0.5% full scale terminal point for ranges 15 psi, 30 Vac, 30V15 and 30V30)

Backlighttrue

Bar Graph20 segment vertical

Battery life2000 hr

Display Indicator4-segment battery life indicator plus dedicated icons for gauge timer, backlight timer, tare, min and max

Display Segment Height12.2 mm (0.48") upper line

6.1 mm (0.24") lower line

Display Type5 Digit LCD

Display Type NoteType: LCD Display Digits: Five (5) Character Height: 3˝ .60˝, 41 ⁄2˝ .88˝ Backlite: Optional Bar Graph: Yes Battery Life: 3˝ >1000 hrs., 41 ⁄2˝ >3600 hrs. Agency Approvals: CE, FM* (Intrinsically Safe Class1, Div 1), CSA and CENELEC *FM is not available with the following: 41 ⁄2˝ polypropylene case, SPDT switch option(s) (XU1, U2) or Backlite (XBL) option).

Enclosure MaterialPolycarbonate

Enclosure RatingsIP67, NEMA Type 4X

Keypad Functions3 Key with Multi Press Functionality On/Off: Power symbol and enter Zero: Zero, tare, and scroll up arrow Menu: access, backlight, down arrow Engineering Units: psi, bar, inHg, cmHg, mmHg, kPa, mPa, kg/cm2, ftH2O, custom units, except on compound gauge ranges Auto-Off: Programmable for 1, 5 or 20 minutes or none for on/off. Display Update: Adjustable for 1 sec, 500 msec or 250 msec.

Materials, WettedStainless Steel

Number of Digits5

Operating Temperature, Max60 °C

Operating Temperature, Min-20 °C

Pressure Accuracy± 0.25 %

Pressure Cycles10 million

Process Connection Note1 ⁄4 NPT male, lower position up to 10,000 psi >10,000 psi: ⁹⁄₁₆-18 UNF Female AMINCO

Process Temperature, Max-20 °C

Process Temperature, Min60 °C

Protective BootStandard

Sample/Display Rate1 Hz

ShockMIL-STD-202G Method 213 B

Supply Power TypeBattery

VibrationMIL-STD-202G Method 201A

View Angle12 o’clock

WindowPolycarbonate
