Code: 783644

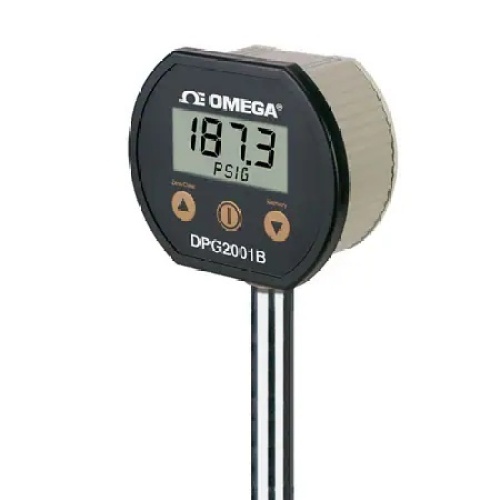

Omega DPG2001B-15V200G -15 TO 200PSIG GAUGE
Normally In Stock
Omega DPG2001B-15V200G -15 TO 200PSIG GAUGE
Condition: New
Usually ships Same Day or Next Day$1173.88
Sale Price
$978.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Digital Pressure Gauge, Selectable Engineering Units, Measurement Memory, Compound Gauge, -15 psi to 200 psi, ± 0.25 %, 1/4 " NPT Male, 4 Digit, Battery Powered, DPG2001B Series, Each
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
Manufacturer
Omega Engineering
Component
Single Pressure Digital Gauge
(Instrument-Sensor) Span
-15 To 200 Psi
Features
± 0.25% Accuracy
316 SS Wetted Parts
Selectable Engineering Units
Selectable Auto Shutoff Times
Accuracy Class0.1% to 0.25%
Accuracy Detail± 0.25% FS ± 1 digit (includes linearity, hysteresis and repeatability)
Auto-Shutoff1 minute to 8 hours, default 5 min
Battery life2000 hr
Battery Size and TypeAlkaline AA
Burst Pressure4x Full Scale or Maximum 10,000 psi
Display Type4 Digit LED
Display Type Note4 digit, 0.5" H and 5 character 0.25" H alphanumeric
Enclosure MaterialABS
Height73 mm
Length42 mm
Materials, Wetted316 Stainless Steel
Media CompatibilityAlcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Number of Digits4
Operating Temperature, Max85 °C
Operating Temperature, Min-20 °C
Overpressure Displayi---- or i -.-.-.-
Pressure Accuracy± 0.25 %
Process Connection Size1/4 in
Process Connection TypeNPT Male
Process Temperature, Max70 °C
Process Temperature, Min0 °C
Storage Temperature, Max95 °C
Storage Temperature, Min-40 °C
Supply Power NoteBattery Note:2 "AA" Batteries (included)
Supply Power TypeBattery
Weight250 g
Weight Note250 g (8.8 oz)
Width86 mm
