Code: 783554
Omega DPG1001B-60G .1%ACCURACY &NIST CERTIFICATE
Normally In Stock
Omega DPG1001B-60G .1%ACCURACY &NIST CERTIFICATE
Condition: New
Usually ships Same Day or Next Day$1352.57
Sale Price
$1127.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

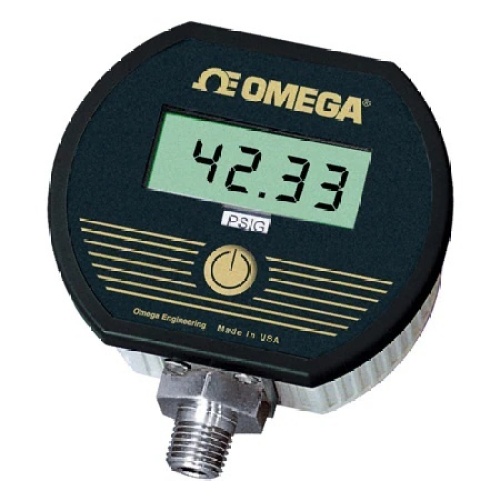

Digital Pressure Gauge with NIST Certification, High Accuracy, Gauge, 0 psi to 60 psi, ± 0.1 %, 1/4 " NPT Male, 3.5 Digit, Battery Powered, DPG1001 Series, Each
Specifications
(Instrument-Sensor) Measurement Accuracy
0.10%
Manufacturer
Omega Engineering
(Instrument-Sensor) Span
0 To 60 Psi
Component
Single Pressure Digital Gauge
Features
NIST Certification Included
High Accuracy +/- 0.10% Test Gauge
316 Stainless Steel Wetted Parts
Easy-to-Read 3 1/2 Digit LCD Display
Accuracy Class0.1% to 0.25%
Accuracy Detail± 0.10% FSO or better, ± 1 least-significant digit (includes linearity, hysteresis, repeatability)
NIST certificate included
Battery Size and TypeAlkaline AA
Burst Pressure4x Full Scale
Display Segment Height13 mm
Display TypeLCD
Display Type NoteLCD, 13 mm (0.5") digit height, 3 readings per second
Materials, Wetted316 Stainless Steel
Number of Batteries2
Operating Temperature, Max85 °C
Operating Temperature, Min-20 °C
Pressure Accuracy± 0.1 %
Pressure, Min0 psi
Pressure TypeGauge
Process Connection Size1/4 in
Process Connection TypeNPT Male
Process Temperature, Max70 °C
Process Temperature, Min0 °C
Proof Pressure2x Full Scale
Storage Temperature, Max95 °C
Storage Temperature, Min-55 °C
Weight255 g
Weight NoteApprox 255 g (9 oz)
