Omega CSH00062 STRIP HEATER
Normally In Stock
Code: 781380
Omega CSH00062 STRIP HEATER
Condition: New
Usually ships Same Day or Next Day$136.32
Sale Price
$113.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

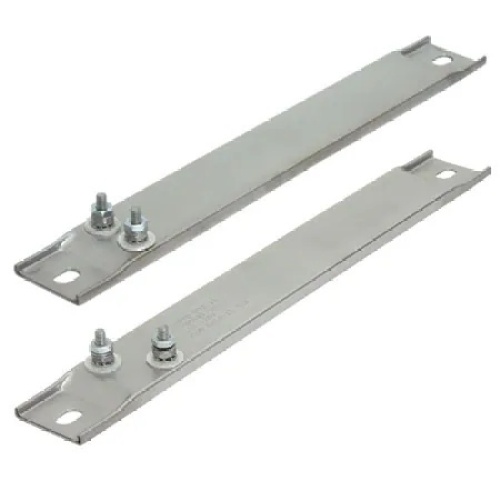

Channel Strip Heater, Ceramic Insulated, 120 Vac, 250 W, 21 W/in², 2 Terminals One End, SS Sheath, 650 °C (1200 °F), 8 " L, 2 Mounting Holes, CSH3 Series, Each
Specifications
Heater Voltage
120 VAC
Manufacturer
Omega Engineering
Component
Strip Heater
Heater Watt
250 Watt
Features
A Reliable Heat Source with Seamless Stainless Steel Sheath
Flat Surface Mounting Installations
Used in Hundreds of Industrial and Commercial Heating Applications
Ovens
ApplicationsDies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds
Form factorStrip
Height0 in
Current, MaxLead Wire Termination: 10 amp
Screw Terminations: 10-32UNF—25 amp
Mounting Slot Size8 mm x 13 mm
Number of Mounting Holes2
Physical Size Construction LimitationsWidth:16 mm (5/8") Wide Heaters: +0.000, -0.005"
25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"
Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008"
[10 mm (3/8") thick heaters have radius corners]
Length:Up to 24": ± 1/16"
Over 24": ± 1/8"
Power Density20 W/in²
Power Density, Max45 W/in²
Power Tolerance5%, -10%
Resistance Tolerance10%, -5%
Sheath Material304 Stainless Steel
Sheath Temperature, Max650 °C
Special Bushings Size13 mm x 16 mm
TerminationTerminals parallel on one side
Voltage, Max480 Vac
Voltage Note480 Vac (when applicable)
