Code: 779855

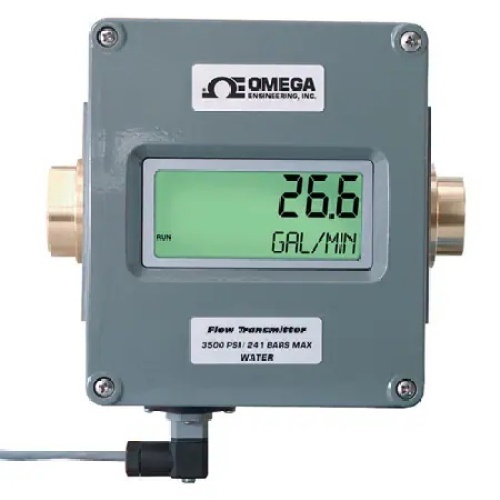

Omega FLR6305D XMTR 0.5-5.0 GPM WATER 1/2 NPT
Normally In Stock
Omega FLR6305D XMTR 0.5-5.0 GPM WATER 1/2 NPT
Condition: New
Usually ships Same Day or Next Day$1829.96
Sale Price
$1524.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Indicating Flow Meter w/Analog Output, Water, 0.5 GPM to 5 GPM, 3500 psi, 1/2 " NPT Female, 116 °C (240 °F), ± 2 %, Digital, Al, T302 SS, Carbon Steel, Silicone, PPS, Ceramic, FKM, FLR Series, Each
Specifications
(Instrument-Sensor) IP Protection
IP54
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Water
Component
Variable Area Flow Meter
(Instrument-Sensor) IP Protection
IP52
Features
2% FS Accuracy
No Straight Pipe Run Required
Mounts in Any Position
4 to 20 mA, 0 to 5 Vdc and 0 to 10 Vdc Outputs Standard
Accuracy± 2 %, ± 5% with transitional flow
Circuit ProtectionReverse polarity, Current Limit
Connection4 - Pin Connection
Digit Size0.70" - Numeric, 0.35" - Alphanumeric
Display TypeLCD
Enclosure RatingsIP52, IP54, NEMA Type 12, NEMA Type 13
IsolationInherently isolated from the piping system
Materials316 Stainless Steel, Stainless Steel
Non-Linearity± 0.05%
Number of Digits8
Power Consumptionmax 25 mA
Process Temperature, Max116 °C
Process Temperature, Min-29 °C
Repeatability± 0.5%
Response Time1 sec
ScaleDigital
Temperature Drift Note0.05% of span per °C maximum
Valve Includedfalse
