Reduced installation time and cost

Non-invasive, non-contact measurement

Continued operation during installation—no need to shut down the process

No pressure head loss

Accuracy± 1 %

Calibration OptionFactory Calibrated

CertificationsCE

Data InterfaceBACnet MS/TP, Modbus RTU, USB

Display LanguageEnglish

Display NoteKeypad : 4-button navigation, keypad with tactile feedback

polyester film Display128 × 64 pixel LED backlit graphical display

adjustable brightness and timeout

polycarbonate window

Display TypeLED

Electrical Connection1/2 in NPT female Conduit with Poly Cable Glands

Electrical Output4 to 20 mA, Two Pulse, Frequency

Enclosure RatingsIP67, NEMA 4

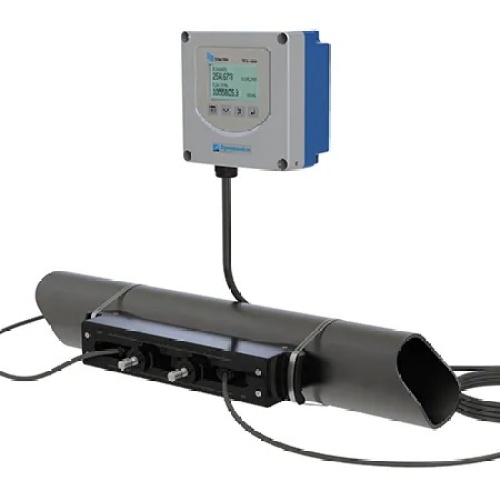

Form factorPipe Remote mount

KeypadYes

MaterialsPVC, CPVC, HDPE, PTFE, PDVF, Stainless Steel, Ductile Iron, Aluminum, Brass, Carbon Steel, Copper

Measurement TypeTransit Time

Number of Digits8

Number of Outputs4

Operating Temperature, Max60 °C

Operating Temperature, Min-20 °C

Output Detail4-20 mA output:One 16-bit, isolated, max 800 Ohms, internal or external power Digital output:Two selectable pulse, alarm, flow direction, sink isolated open collector, 5-30V DC, max. 50 mA externally or internally sourced Frequency output: 50% duty cycle, 63-10k Hz maximum frequency Pulse (totalizer) output: 5 kHz max. output, open collector, pulse width 5-500 ms programmable Optional: Two dry contact output for alarm or flow direction 30V DC max., 5A max. (Ethernet not available with this option)

Open Collector Output: 5 to 30 Vdc, max. 50 mA externally or internally sourced

Process Temperature, Min-40 °C

Pulse Rates5 KHz

Relative Humidity85% non condensing

Repeatability0.002

Repeatability Note0.2% above 1.5 ft/s

SoftwareSoloCUE

Storage Temperature, Max80 °C

Storage Temperature, Min-40 °C

Velocity, Max40 ft/s

Velocity, Min0.1 ft/s

Volumetric Flow Rate, Min0 GPM
