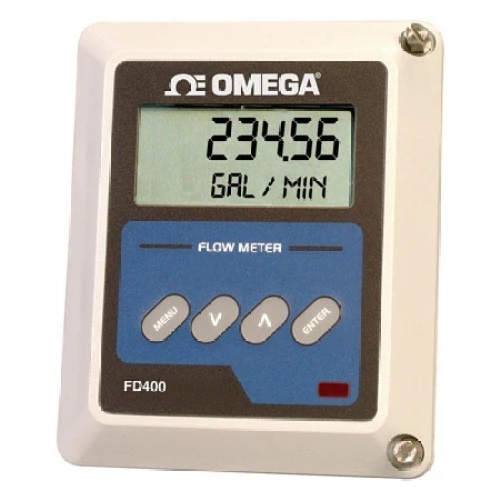

Omega FD-400 ULTRASONIC RATE & TOTALZR CE
Normally In Stock
Code: 779833
Omega FD-400 ULTRASONIC RATE & TOTALZR CE
Condition: New
Usually ships Same Day or Next Day$4171.56
Sale Price
$3476.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ultrasonic Flow Meter, Doppler, Solids/Gas Bubbles, 0.15 FPS to 30 FPS, 1/3 " to 120 " Dia, ± 2 % Accuracy, 115 Vac, Wall Mount, LCD Display, FD-400 Series, Each
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
Manufacturer
Omega Engineering
Component
Ultrasonic Flow Meter
Features
Non-Intrusive, Clamp-On Transducer for Most Pipes from 6 mm to 3m (1/4 to 120')
Insertion Probe Transducer Also Available
Wide Measuring Range of 0.05 to 9 mps (0.15 to 30 fps)
±2% of Calibrated Span Accuracy
Accuracy± 2 %, ± 5% with transitional flow
Accuracy Detail±2% FS over calibrated span
Cable Length6 m
Calibration OptionNIST
Display Note2-line x 8-character LCD
LED backlighting
top row, 7-segment 18 mm (0.7")
bottom row, 14-segment 9 mm (0.35")
8-digit rate, 8-digit total (resettable)
Display TypeLCD
Enclosure RatingsIP66, NEMA Type 4X
Form factorWall Mount
KeypadYes
MaterialsPolycarbonate, Stainless steel, Brass, Plated-steel mounting brackets
Measurement TypeDoppler Ultrasonic
Number of Digits8
Operating Temperature, Max85 °C
Operating Temperature, Min-40 °C
Pipe Size, Max120 in
Pipe Size, Min0.3333 in
Response Time1 to 60 sec
Supply Power Note115/230 Vac, 50/60 Hz ±15% @ 5 VA max
12 to 28 Vdc @ 2.5 VA max
Velocity, Max9 m/s
Velocity, Min0.05 m/s
