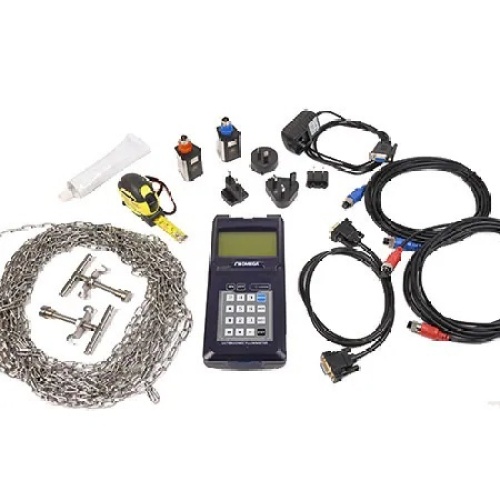

Omega FDT-25 HANDHELD ULTRASONIC FLOWMETER
Normally In Stock
Code: 779831
Omega FDT-25 HANDHELD ULTRASONIC FLOWMETER
Condition: New
Usually ships Same Day or Next Day$2801.58
Sale Price
$2334.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ultrasonic Flow Meter Kit, Portable, Digital, Clean Fluids, 0.03 FPS to 105 FPS, 3/4 " to 4 " Pipe, ± 1 %, Rechargeable Battery, Handheld with Transducers, LCD Display, Each
Specifications
(Instrument-Sensor) IP Protection
IP65
Manufacturer
Omega Engineering
Component
Ultrasonic Flow Meter
Features
Accuracy± 1 %
Accuracy Detail±1% of reading at rates >(0.2m/s) 0.6 ft/s
Battery Size and TypeNiMh AAA
Cable Length5 m
Data InterfaceRS232
Display LanguageEnglish, Chinese
Display Note4 x 16 English letters, 4 x 8 Chinese characters
Display TypeLCD
Enclosure RatingsIP65
MaterialsABS
Measurement TypeTransit Time
Operating Temperature, Max60 °C
Operating Temperature, Min-20 °C
Pipe Size, Max4 in
Pipe Size, Min0.75 in
Process Temperature, Max90 °C
Process Temperature, Min0 °C
Relative Humidity85% RH
Repeatability0.002
Response Time0 to 999 sec
Supply Power Note3 "AAA" NiMH built-in batteries (included) with 100 to 240 VAC charger, fully charged lasts over 10 hrs
Supply Power TypeBattery
Transducer TypeClamp-on
Velocity, Max32 m/s
Velocity, Min-32 m/s
