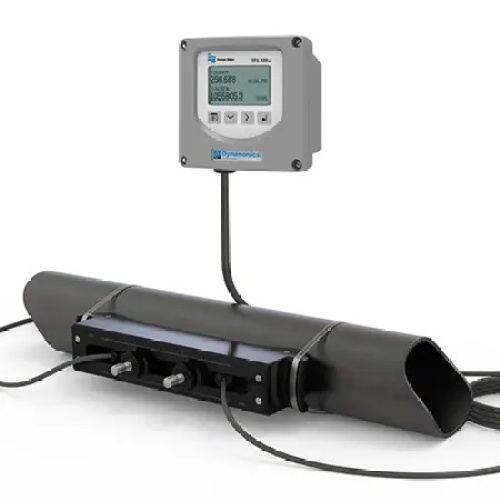

Clamp-on, non-invasive Flow Meter

Bidirectional flow measurement system

Measures flow rate, total and velocity of water flow

Set up the meter through keypad interface or with SoloCUE® Flow Device Manager software

Accuracy± 1 %

Calibration OptionFactory Calibrated

CertificationsCE

Data InterfaceBACnet MS/TP, Modbus RTU, USB

Display LanguageEnglish, French, German and Spanish selectable

Display NoteKeypad: 4-button navigation, membrane keypad with domed tactile feedback Resolution: 128 × 64 pixel LED backlit graphical display

adjustable brightness and timeout

Display TypeLED

Electrical Output4 to 20 mA, Two Pulse, Frequency

Enclosure RatingsIP65

Form factorPipe Remote mount

KeypadYes

Materials316 Stainless Steel, Polycarbonate

Measurement TypeTransit Time

Number of Outputs4

Operating Temperature, Max60 °C

Operating Temperature, Min-20 °C

Output DetailPulse / Frequency /Digital : Two outputs, each selectable as frequency, pulse, forward/reverse flow or alarm output

isolated open collector, 5-30V DC, 50 mA maximum, externally or internally sourced with pullup resistor Digital alarm output: configurable high or low Frequency output: 63 Hz-10 kHz maximum Pulse (totalizer) output: 100 Hz maximum output open collector, pulse width 5-500 ms programmable Analog Output: 0-20 mA and 4-20 mA drive up to 800 Ohms

minimum 16-bit resolution, isolated Open Collector Output: 5 to 30 Vdc, max. 50 mA externally or internally sourced

Pipe Size, Max10 in

Pipe Size, Min2.5 in

Process Temperature, Min-40 °C

Pulse Rates100 Hz

Repeatability±0.2%

Repeatability Note±0.2% of reading

Reserved TypeStandard

SoftwareSoloCUE

Storage Temperature, Max80 °C

Storage Temperature, Min-40 °C

Supply Power TypeDC

Supply Voltage9 to 28 Vdc

Velocity, Max40 ft/s

Velocity, Min0.1 ft/s
