Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 779823

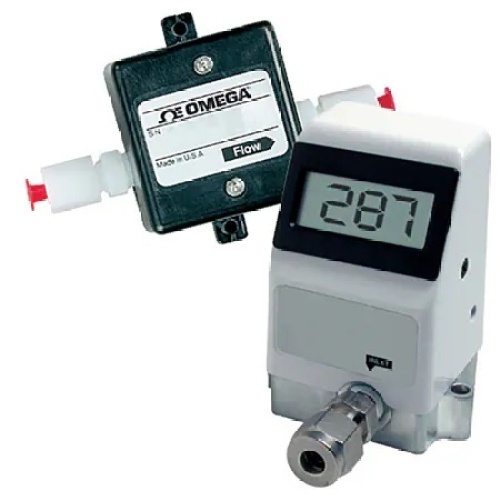

Omega FLR1001-BR-D BRASS WITH DISPLAY
Normally In Stock
Omega FLR1001-BR-D BRASS WITH DISPLAY
Condition: New
Usually ships Same Day or Next Day$1368.64
Sale Price
$1140.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Turbine Flow Meter, Low-Flow, Gas, 20 mL/min to 100 mL/min, 1/8 ", Compression Fitting, ± 3 %, 0 Vdc to 5 Vdc, Brass, PPS, Glass, SS, Sapphire, FKM, LCD Display, FLR1000 Series, Each
Specifications
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Gases
Component
Turbine Flow Meter
(Instrument-Sensor) Supply Voltage
11.5- 15 VDC
Features
0 to 5 Vdc Linear Output Signal
Power Input 12 Vdc or 24 Vdc (depending on the model)
Ranges from 20 to 100 ml/min, 100 to 500 L/min
1% Accuracy for Liquids/3% Accuracy for Gasses
Cable Length3 ft
Electrical ConnectionFour-Pin
Height3.5 in
Length3 in
Mounting#4 Screw
Number of Digits3.5
Operating Pressure Note40 psi at 20°C (68°F)
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
Output Detail0 to 5 Vdc, adjustable ±20% (typical)
Repeatability Note±0.5% FS from 50 to 100% of rated maximum flow for gas
Storage Temperature, Max70 °C
Storage Temperature, Min0 °C
Supply Current30 mA
Temperature Effect±0.2%/°C
Width1.75 in
