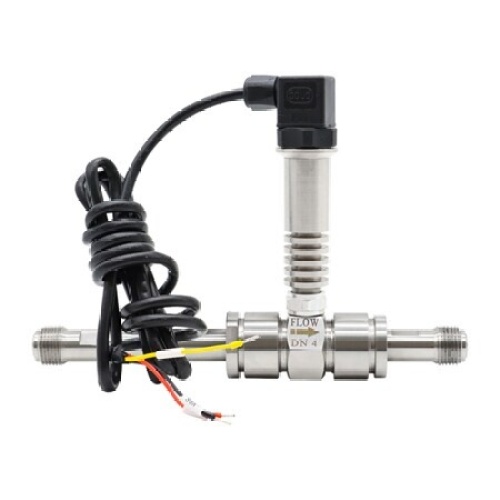

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 779783
Omega FTB-804-I 1/2"TURBINE METER,304SS,4-20MA,1.76 GPM
Normally In Stock
Omega FTB-804-I 1/2"TURBINE METER,304SS,4-20MA,1.76 GPM
Condition: New
Usually ships Same Day or Next Day$1639.21
Sale Price
$1366.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Turbine Flow Meter, Liquid, 0.176 GPM to 1.76 GPM (0.6662 LPM to 6.662 LPM), 1/2 ", NPT Male, ± 0.5 %, 4 mA to 20 mA, 304, 316, CD4MCU SS, Tungsten Carbide, FTB-800 Series, Each
Specifications
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) Medium
Liquids
Manufacturer
Omega Engineering
Component
Turbine Flow Meter
Features
The sensor is of hard alloy bearing thrust type, which mayguarantee the precision and improve the wear resistance performance as well.
Simple and firm structure easy for installation and dismantling.
Wide range of measuring with very low lower flow velocity limit.
Small loss of pressure fine repeat ability and high precision.
Accuracy± 0.5 %
Additional Features 12M Cable, 8 Blade CD4MCU Stainless Steel Rotor
CertificationsCNAS Traceable Calibration
Electrical Output4 to 20 mA
Materials, Wetted304 Stainless Steel, 316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide
Media CompatibilityLiquids
Output DetailOutput: 4 to 20mA output Two wires from the flow sensor, 24V+ and 24V-, connect other instrument which can supply 24V
Output SignalCurrent
Process Connection TypeNPT Male
Repeatability±0.1%
Supply Voltage24 Vdc
