Code: 779482

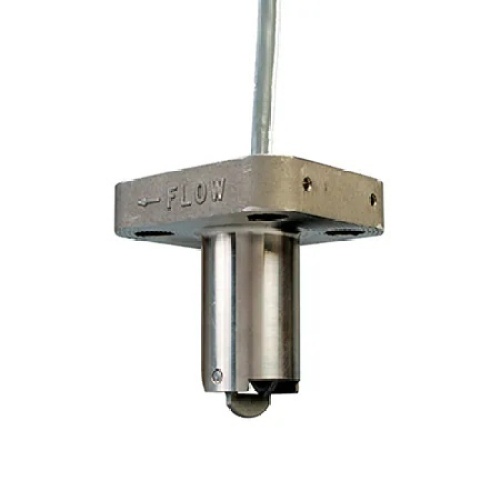

Omega FP-5300 PADDLE WHEEL SENSOR-0.5 /4"
Normally In Stock
Omega FP-5300 PADDLE WHEEL SENSOR-0.5 /4"
Condition: New
Usually ships Same Day or Next Day$701.50
Sale Price
$584.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Paddlewheel Flow Sensor, Low Cost, 1 FPS to 20 FPS, ± 1 % Accuracy, Sinusoidal, PP, 180 psi, 1/2 " to 4 " Pipe, FP-5300 Series, Each
Specifications
(Instrument-Sensor) Medium
Liquids
Manufacturer
Omega Engineering
Component
Paddlewheel Flow Meter
(Instrument-Sensor) Span
0 To 180 Psi
Features
Accurate to ±0.2 fps
Repeatability at ±0.1 fps
Simple and Accurate Flow Measurement
Accuracy± 1 %
Cable Length25 ft
Electrical Output1 V p-p/fps
Impedance8 kΩ
K-Factor6 Hz/fps
Material Construction OptionN/A
Materials, WettedFKM, Glass-Filled Polypropylene, Polypropylene, Titanium
Media CompatibilityLiquids
Media Compatibility Note1% of volume, non-abrasive, nonmagnetic, <100 micron diameter and length standard
Mounting OrientationN/A
Operating Pressure, Max180 psi
Operating Pressure, Min0 psi
Pressure Drop NoteEqual to 2.5 m (8') of straight pipe
Pressure TypeGauge
Process Temperature, Max90 °C
Process Temperature, Min0 °C
Velocity, Max20 ft/s
Velocity, Min1 ft/s
Viscosity Note1 Centipoise (water)
up to 5 cp above 5 fps velocity
Viscosity Range5 cPs
Weight0 kg
