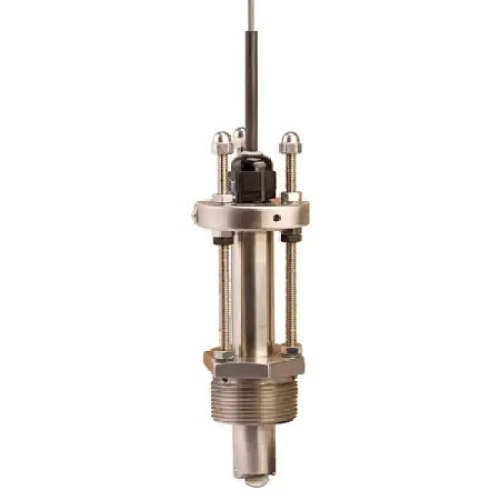

Omega FP-3-1500-2B SS HOT-TAP SENSOR 1.5"NPT CE
Normally In Stock
Code: 779478
Omega FP-3-1500-2B SS HOT-TAP SENSOR 1.5"NPT CE
Condition: New
Usually ships Same Day or Next Day$1956.41
Sale Price
$1630.34
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Flow Sensor with 1.5 " NPT Thread, Hot-Tap, 5 Vdc to 24 Vdc, 0.3 FPS to 20 FPS, ± 1 % Accuracy, Amplified Square Pulse, 316 SS, 250 psi, Each
Specifications
(Instrument-Sensor) Medium
Liquids
Manufacturer
Omega Engineering
(Instrument-Sensor) Supply Voltage
5- 24 VDC
(Instrument-Sensor) Span
0 To 250 Psi
Component
Paddlewheel Flow Meter
Features
Rugged 316 Stainless Steel Construction
Flow Rates as Low as 0.3 fps
Installs in a Variety of Pipe Sizes
No Magnets in Process Fluid
Accuracy± 1 %
ApprovalsCE
Cable Length25 ft
Cable Length Note7.6 m (25') 305 m (1000') maximum
Cable TypeTwisted Pair with Foil Shield
Electrical OutputOpen Collector, Sinking
K-Factor15 Hz/fps
Linearity Error±1%
Material Construction OptionN/A
Materials, Wetted316 Stainless Steel, FKM, PEEK
Media CompatibilityLiquids
Mounting OrientationN/A
Operating Pressure, Max250 psi
Operating Pressure, Min0 psi
Operating Temperature, Max149 °C
Operating Temperature, Min-46 °C
Output DetailOutput Signal: Open collector, sinking, Output Frequency: 15 Hz per fps
Pipe Connection NoteHot Tap
Pipe Size, Min1.5 in
Pressure TypeGauge
Process Connection Size1 1/2 in
Process Connection TypeNPT Male
Process Temperature, Max82 °C
Process Temperature, Min0 °C
Process Temperature NoteWith standard FKM O-rings: 250 psi @82°C (180°F)
Repeatability Error±0.5%
Supply Voltage5 to 24 Vdc
Velocity, Max20 ft/s
Velocity, Min0.3 ft/s
Weight0 kg
