Code: 779321

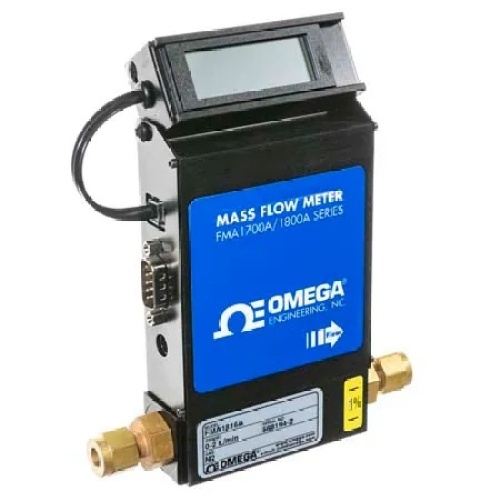

Omega FMA1845A MASSFLOW W/DISP 0-1000 SLM CE
Normally In Stock
Omega FMA1845A MASSFLOW W/DISP 0-1000 SLM CE
Condition: New
Usually ships Same Day or Next Day$2894.39
Sale Price
$2411.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mass Flow Meter, Economical, Gas, 10 SLM to 1000 SLM, 500 psi, 3/4 " NPT Female, 0 Vdc to 5 Vdc, 4 mA to 20 mA, LCD, 50 °C (122 °F), ± 1 %, Al, Brass, FKM, FMA1800A Series, Each
Specifications
(Instrument-Sensor) Supply Voltage
12 VDC
(Instrument-Sensor) Medium
Air
(Instrument-Sensor) Medium
Nitrogen
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Gases
(Instrument-Sensor) Medium
Oxygen
Component
Mass Flow Meter
(Instrument-Sensor) Span
0 To 500 Psi
Features
Reads Gas Mass Flow Without Temperature or Pressure Compensation
Available in Economical Aluminum or Corrosion- Resistant 316 SS
Tiltable LCD Display for Easy Reading
NIST Traceable Calibration Included
Accuracy Detail± 1.5% of full scale, including linearity over 15 to 25°C and 5 to 60 psia (0.35 to 4.2 kg/cm2)
CalibrationNIST Certificate
ComplianceCE
Electrical Output4 to 20 mA, 0 to 5 Vdc
Leak Rate Under Vacuumless than 10^⁻9 cc He/s
Operating Pressure, Min0 psi
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
Output DetailLinear 0 to 5 Vdc: 1000 Ω minimum load
4 to 20 mA: 50 to 250 Ω loop resistance
Output SignalCurrent, Voltage
Pressure Coefficient0.01% FS/psi
Pressure Drop, Max252 inH₂O
Repeatability± 0.5%
Response Time800 ms
Response Time Note800 msec time constant
2 seconds (typical) to within ± 2% of set flow rate over 25 to 100% of full scale
Supply CurrentUp to 200 mA
Supply Voltage12 Vdc
Temperature Coefficient0.15% FS/°C
Turndown Ratio100:1
Volumetric Flow Rate, Min10 SLM
