Code: 779262

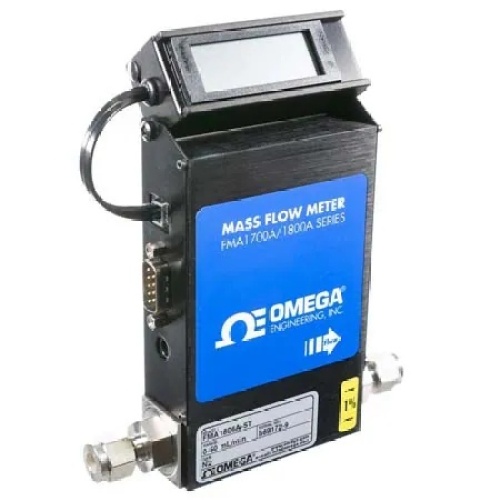

Omega FMA1716A-ST 316 SS W/O DISP 0-2 SLM CE
Normally In Stock
Omega FMA1716A-ST 316 SS W/O DISP 0-2 SLM CE
Condition: New
Usually ships Same Day or Next Day$1863.00
Sale Price
$1552.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mass Flow Meter, Economical, Gas, 0.02 SLM to 2 SLM, 1000 psi, 1/4 " Compression, 0 Vdc to 5 Vdc, 4 mA to 20 mA, 50 °C (122 °F), ± 1 %, 316 SS, FKM, FMA1700A Series, Each
Specifications
(Instrument-Sensor) Supply Voltage
12 VDC
(Instrument-Sensor) Medium
Air
(Instrument-Sensor) Medium
Nitrogen
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Gases
(Instrument-Sensor) Medium
Oxygen
Component
Mass Flow Meter
(Instrument-Sensor) Span
0 To 1000 Psi
Features
Reads Gas Mass Flow Without Temperature or Pressure Compensation
Available in Economical Aluminum or Corrosion- Resistant 316 SS
Tiltable LCD Display for Easy Reading
NIST Traceable Calibration Included
Accuracy Detail± 1.5% of full scale, including linearity over 15 to 25°C and 5 to 60 psia (0.35 to 4.2 kg/cm2)
CalibrationNIST Certificate
ComplianceCE
Electrical Output4 to 20 mA, 0 to 5 Vdc
Leak Rate Under Vacuumless than 10^⁻9 cc He/s
Operating Pressure, Min0 psi
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
Output DetailLinear 0 to 5 Vdc: 1000 Ω minimum load
4 to 20 mA: 50 to 250 Ω loop resistance
Output SignalCurrent, Voltage
Pressure Coefficient0.01% FS/psi
Pressure Drop, Max252 inH₂O
Repeatability± 0.5%
Response Time800 ms
Response Time Note800 msec time constant
2 seconds (typical) to within ± 2% of set flow rate over 25 to 100% of full scale
Supply CurrentUp to 200 mA
Supply Voltage12 Vdc
Temperature Coefficient0.15% FS/°C
Turndown Ratio100:1
Volumetric Flow Rate, Min10 SLM
