Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 779229

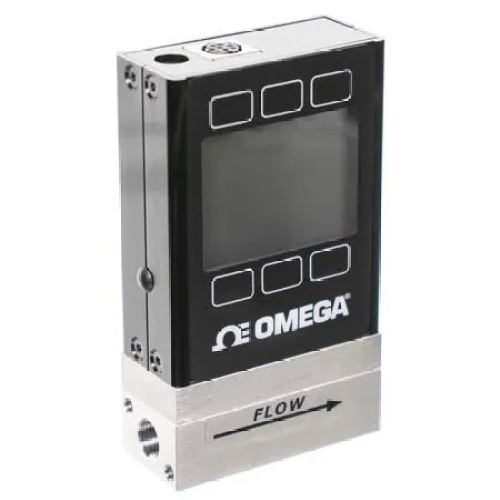

Omega FMA-1616A MASSFLOW METER 20 SCCM 0-5V
Normally In Stock
Omega FMA-1616A MASSFLOW METER 20 SCCM 0-5V
Condition: New
Usually ships Same Day or Next Day$2720.77
Sale Price
$2267.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mass Flow Meter, Gas, 0.1 SCCM to 20 SCCM, RS232, 145 psi, 10-32 UNF Female, 0 Vdc to 5 Vdc, LCD, 50 °C (122 °F), ± 0.8 %, 300 SS, Al, Silicone, FKM, Supply Incl, FMA-1600A Series, Each
Specifications
(Instrument-Sensor) Medium
Air
(Instrument-Sensor) Medium
Nitrogen
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Gases
(Instrument-Sensor) Medium
Oxygen
Component
Mass Flow Meter
(Instrument-Sensor) Supply Voltage
7- 30 VDC
(Instrument-Sensor) Span
0 To 145 Psi
Features
Ranges of 0 to 0.5 SCCM Up to 0 to 3000 SLM
< 10ms Response Time—Field Adjustable
130+ Gas Calibrations with Every Unit: Air, Ar, CH4, CO, CO2, Ethane, H2, He, N2, N2O, Neon, O2, Propane, Butane, Acetylene, Ethylene and more
Pressure, Temperature, and Volumetic and Mass Flow Simultaneously Displayed
Accuracy± 0.8 %
Accuracy Detail± (0.8% of rdg + 0.2% FS)
Additional Features 1Power Supply Included
CalibrationNIST 5-Point Certificate
Data InterfaceRS232
Display TypeLCD
Electrical Connection8-pin mini DIN
Height4.1 in
Humidity Range0 to 100% RH non-condensing
Materials, WettedAluminum, Brass, Epoxy, FKM, Glass, Gold, Silicone, Stainless Steel
Measurable Flow Rate125%
Media CompatibilityAir, Gases, Nitrogen, Oxygen
Operating Pressure, Max145 psi
Operating Pressure, Min0 psi
Operating Temperature, Max50 °C
Operating Temperature, Min-10 °C
Pressure Drop, Min1 psi
Repeatability± 0.2%
Response Time10 ms
Response Time Note10 ms typical default response time for 63.2% of a step change. A variable register allows response time to be field adjustable to a certain extent via RS232 communications. The primary trade-off for response time is signal noise
Span Shift0.02% FS/°C/atm
Supply Current35 mA
Supply Power Note35 mA typical current draw
100 mA available supply recommended
Turndown Ratio200:1
Volumetric Flow Rate, Min0.05 SLM
Width1.1 in
