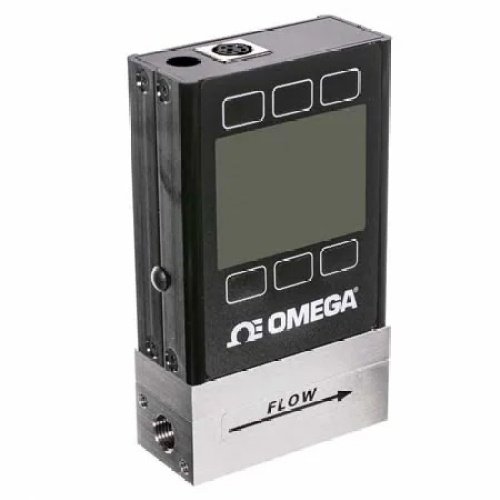

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 779224
Omega FMA-1614A MASSFLOW METER 2SCCM 0-5V
Normally In Stock
Omega FMA-1614A MASSFLOW METER 2SCCM 0-5V
Condition: New
Usually ships Same Day or Next Day$3630.48
Sale Price
$3025.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mass Flow Meter, Gas, 0.01 SCCM to 2 SCCM, RS232, 145 psi, 10-32 UNF Female, 0 Vdc to 5 Vdc, LCD, 50 °C (122 °F), ± 0.8 %, 300 SS, Al, Silicone, FKM, Supply Incl, FMA-1600A Series, Each
Specifications
(Instrument-Sensor) Medium
Air
(Instrument-Sensor) Medium
Nitrogen
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Gases
(Instrument-Sensor) Medium
Oxygen
Component
Mass Flow Meter
(Instrument-Sensor) Supply Voltage
7- 30 VDC
(Instrument-Sensor) Span
0 To 145 Psi
Features
Ranges of 0 to 0.5 SCCM Up to 0 to 3000 SLM
< 10ms Response Time—Field Adjustable
130+ Gas Calibrations with Every Unit: Air, Ar, CH4, CO, CO2, Ethane, H2, He, N2, N2O, Neon, O2, Propane, Butane, Acetylene, Ethylene and more
Pressure, Temperature, and Volumetic and Mass Flow Simultaneously Displayed
Accuracy± 0.8 %
Accuracy Detail± (0.8% of rdg + 0.2% FS)
Additional Features 1Power Supply Included
CalibrationNIST 5-Point Certificate
Data InterfaceRS232
Display TypeLCD
Electrical Connection8-pin mini DIN
Height4.1 in
Humidity Range0 to 100% RH non-condensing
Materials, WettedAluminum, Brass, Epoxy, FKM, Glass, Gold, Silicone, Stainless Steel
Measurable Flow Rate125%
Media CompatibilityAir, Gases, Nitrogen, Oxygen
Operating Pressure, Max145 psi
Operating Pressure, Min0 psi
Operating Temperature, Max50 °C
Operating Temperature, Min-10 °C
Pressure Drop, Min1 psi
Repeatability± 0.2%
Response Time10 ms
Response Time Note10 ms typical default response time for 63.2% of a step change. A variable register allows response time to be field adjustable to a certain extent via RS232 communications. The primary trade-off for response time is signal noise
Span Shift0.02% FS/°C/atm
Supply Current35 mA
Supply Power Note35 mA typical current draw
100 mA available supply recommended
Turndown Ratio200:1
Volumetric Flow Rate, Min0.05 SLM
Width1.1 in
