Code: 779097

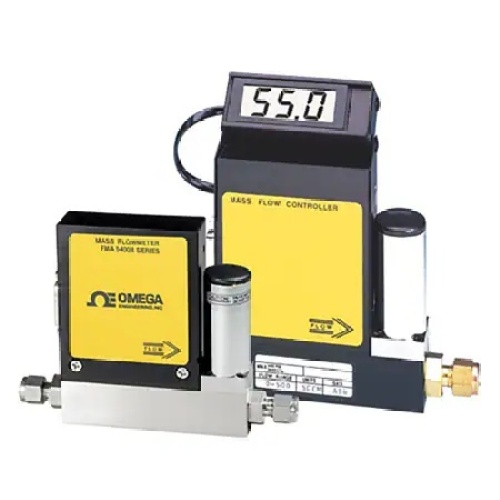

Omega FMA5443 MASSFLOW CNTRLR 0-200 SLM CE
Normally In Stock
Omega FMA5443 MASSFLOW CNTRLR 0-200 SLM CE
Condition: New
Usually ships Same Day or Next Day$3557.28
Sale Price
$2964.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mass Flow Controller, Economical, Gas, 5 SLM to 200 SLM, 500 psi, 50 °C (122 °F), ± 1.5 %, 3/4 " NPT Female, 0 Vdc to 5 Vdc, 4 mA to 20 mA, Std, Aluminum, Brass, FKM, FMA5400A Series, Each
Specifications
(Instrument-Sensor) Medium
Air
(Instrument-Sensor) Medium
Nitrogen
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Gases
(Instrument-Sensor) Medium
Oxygen
Component
Mass Flow Meter
(Instrument-Sensor) Supply Voltage
12- 15 VDC
(Instrument-Sensor) Span
0 To 500 Psi
Features
NIST Traceable Calibration
Reads and Controls Gas Mass Flow Without Temperature or Pressure Compensation
Available in Economical Aluminum or Corrosion-Resistant 316 SS
Tiltable LCD Display for Easy Reading
Accuracy DetailFor units with full range less than 100 SLM ± 1% FS, including linearity over 15 to 25°C (59 to 77°F) and 0.7 to 4.2 kg/cm² (10 to 60 psia). For units ≥ 100 SLM Full Range: ± 1.5% FS, including linearity over 15 to 25°C (59 to 77°F) and 0.7 to 4.2 kg/cm² (10 to 60 psia) from 20 to 100% of range
± 3% FS from 0 to 20% of range
Altitude SensitivityHorizontal flow path, no shift in calibration up to +20 degree pitch
CalibrationNIST Certificate
ComplianceCE
Control ValveSolenoid Valve
Electrical Output4 to 20 mA, 0 to 5 Vdc
Enclosure RatingsInst. Level II/Poll. Degree II (IEC 60664)
Humidity Range0 to 70% RH
Leak Rate Under Vacuumless than 10^⁻⁷ cc He/s
Operating Pressure, Min0 psi
Operating Pressure Note35 kg/cm² gage (500 psig)
70 kg/cm2 gage (1000 psig) for ranges up to 100 SLPM. 1.76 kg/cm (25 psig) optimum
Operating Temperature, Max50 °C
Operating Temperature, Min5 °C
Output DetailLinear 0 to 5 Vdc: 1000 V minimum load
4 to 20 mA: 50 to 500 V loop resistance, ± 20 mV max noise
Output SignalCurrent, Voltage
Pressure Coefficient0.01% FS/psi
Pressure Drop, Max50 psi
Repeatability± 0.5%
Response Time5 sec
Response Time Note5 seconds to within ± 2% of set flow rate over 25 to 100% FS
Supply CurrentUp to 800 mA
Supply Voltage12 to 15 Vdc
Temperature Coefficient0.15% FS/°C
Turndown Ratio40:1
Volumetric Flow Rate, Min0.25 SCCM
