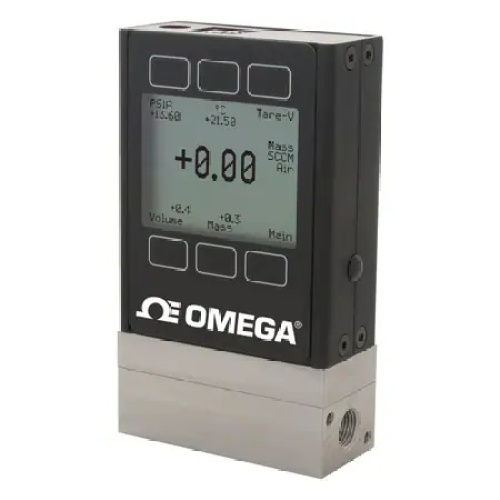

Omega FMA-LP1608A-I LPD MSFLW MTR 20 SLPM 4-20MA
Normally In Stock
Code: 779031
Omega FMA-LP1608A-I LPD MSFLW MTR 20 SLPM 4-20MA
Condition: New
Usually ships Same Day or Next Day$3311.78
Sale Price
$2759.82
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mass Flow Meter, Low Drop, Gas, 0.1 SLM to 20 SLM, RS232, 50 psi, 1/4 " NPT Female, 4 mA to 20 mA, LCD, 50 °C (122 °F), ± 0.8 %, 300 SS, Al, Silicone, FKM, FMA-LP1600A Series, Each
Specifications
(Instrument-Sensor) IP Protection
IP40
(Instrument-Sensor) Medium
Air
(Instrument-Sensor) Medium
Nitrogen
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Gases
(Instrument-Sensor) Medium
Oxygen
Component
Mass Flow Meter
(Instrument-Sensor) Span
0 To 50 Psi
(Instrument-Sensor) Supply Voltage
15- 30 VDC
Features
Ranges of 0 to 0.5 SCCM Up to 0 to 500 SLM
Reports Mass Flow, Volumetric Flow, Temperature, and Pressure
< 10 ms Response Time—Field Adjustable
130+ Gas Calibrations, Including Air, Ar, CH4, CO, CO2, Ethane, H2, He, N2, N2O, Neon, O2, Propane, Butane, Iso-Butane, Acetylene, Ethylene, Krypton, Xenon, and Sulfur Hexafluoride
Accuracy± 0.8 %, ± 0.8 %
Accuracy Detail± (0.8% of rdg + 0.2% FS), ± (0.8% of rdg + 0.2% FS)
Additional Features 1Power Supply Included, Power Supply Included
CalibrationNIST 5-Point Certificate, NIST 5-Point Certificate
Data InterfaceRS232, RS232
Display TypeLCD, LCD
Electrical Connection8-pin mini DIN, 8-pin mini DIN
Enclosure RatingsIP40, IP40
Height4.4 in, 4.4 in
Humidity Range0 to 100% RH non-condensing, 0 to 100% RH non-condensing
Length4 in, 4 in
Mass Reference Conditions25°C, 14.7 psia (STP), 25°C, 14.7 psia (STP)
Materials, WettedAluminum, FKM, Nylon, Silicone, Stainless Steel, Aluminum, FKM, Nylon, Silicone, Stainless Steel
Measurable Flow Rate125%, 125%
Media CompatibilityAir, Gases, Nitrogen, Oxygen, Air, Gases, Nitrogen, Oxygen
Operating Pressure, Max50 psi, 50 psi
Operating Temperature, Max50 °C, 50 °C
Operating Temperature, Min-10 °C, -10 °C
Pressure Drop, Max0.25 psi, 0.25 psi
Pressure Drop Note0.25 Pressure Drop at Max Flow (psid) Venting to Atmosphere, 0.25 Pressure Drop at Max Flow (psid) Venting to Atmosphere
Repeatability± 0.2%, ± 0.2%
Response Time10 ms, 10 ms
Response Time Note10 ms typical default response time for 63.2% of a step change. A variable register allows response time to be field adjustable via RS232 communications., 10 ms typical default response time for 63.2% of a step change. A variable register allows response time to be field adjustable via RS232 communications.
Span Shift0.02% FS/°C/atm, 0.02% FS/°C/atm
Supply Current40 mA, 40 mA
Supply Power Note40 mA typical current draw
100 mA available supply recommended, 40 mA typical current draw
100 mA available supply recommended
Turndown Ratio200:1, 200:1
Volumetric Flow Rate, Min0.1 SLM, 0.1 SLM
Width1.6 in, 1.6 in
