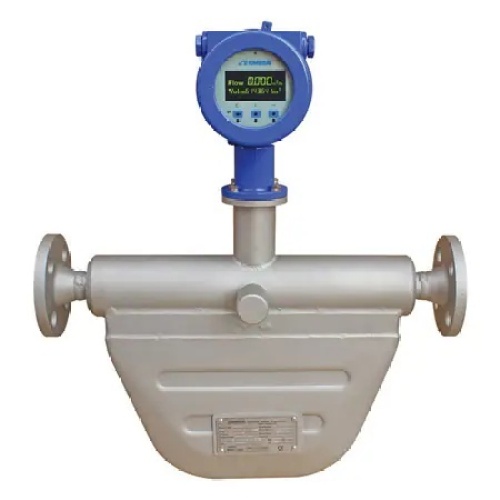

Omega FMC-5201LA Compact Liquid Coriolis Meter, 1/2" ANSI
Normally In Stock
Code: 778901
Omega FMC-5201LA Compact Liquid Coriolis Meter, 1/2" ANSI
Condition: New
Usually ships Same Day or Next Day$10911.49
Sale Price
$9092.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mass Flow Meter, Coriolis, Liquid, 150 kg/h to 3000 kg/h, RS485, 230 psi, 1 " Flange-ANSI, 0 kHz to 10 kHz, 4 mA to 20 mA, LCD, 125 °C (257 °F), ± 0.2 %, 304 SS, 316 SS, FMC-5000 Series, Each
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP65
Component
Coriolis Flow Meter
(Instrument-Sensor) Medium
Liquids
Manufacturer
Omega Engineering
(Instrument-Sensor) Span
0 To 230 Psi
(Instrument-Sensor) Medium
Oil
(Instrument-Sensor) Medium
Water
(Instrument-Sensor) Supply Voltage
18- 36 VDC
(Instrument-Sensor) Medium
Alcohols
Features
Mass Flow Rate, Volume, Density and Temperature Measurements
Rugged Meters with No Moving Parts Results in Minimal Maintenance
Accuracy Over a Wide Flow Range From a Single Meter Optimizes Plant Efficiency
No Flow Conditioning or Straight Pipe Runs Required, Making Installation Simplified and Less Expensive
Additional Features 1Remote Mounted Display/Transmitter
ComplianceCE, RoHS 2
Data InterfaceRS485
Data Interface NoteRS485 (RTU Modbus®), HART® (-HART option)
Density Accuracy± 0.002 g/cm³
Density, Max3 g/cm³
Density, Min0.2 g/cm³
Density Repeatability± 0.001 g/cm³
Electrical Connection1/2 in NPT female Conduit with Screw Terminal block
Electrical Output4 to 20 mA, 0 to 10 kHz
Enclosure RatingsIP65, NEMA Type 4X
Humidity Range5 to 95% RH
Materials, Wetted304 Stainless Steel, 316L Stainless Steel
Operating Pressure, Max230 psi
Operating Pressure, Min0 psi
Operating Pressure Note16 bar (230 psi), [Optional: 25 bar (360 psi), 40 bar (580 psi) and 63 bar (913.7 psi)]
Operating Temperature, Max55 °C
Operating Temperature, Min-40 °C
Output DetailPulse Output: 0 to 10 kHz, ± 0.075% Full Scale
Current Output: 4 to 20 mA, 0.005% Full Scale
Output SignalCurrent, DC Pulse
Process Temperature, Min-50 °C
Supply Power Note18 to 36 Vdc, 85 to 265 Vac (-AC option), 15 W
Supply Voltage18 to 36 Vdc
Temperature Accuracy± 1 °C
Weight26.5 lb
