Code: 778797

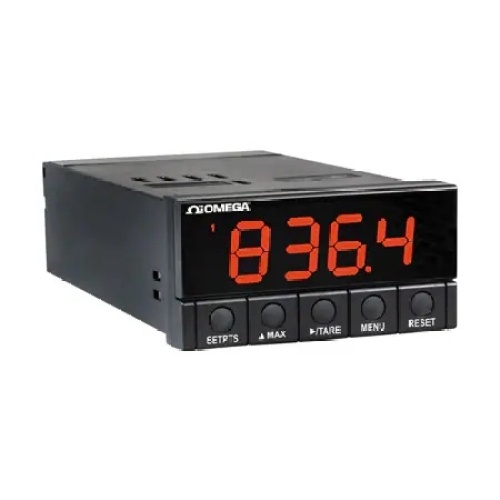

Omega DP25B-E-DC10/32-AR PROCESS METER BIG DISPLAY CE
Normally In Stock
Omega DP25B-E-DC10/32-AR PROCESS METER BIG DISPLAY CE
Condition: New
Usually ships Same Day or Next Day$1217.33
Sale Price
$1014.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Process Panel Meter, 1/8 DIN, 3.5 Digit, 9-Segment Selectable Color LED Display, 10 Vdc to 32 Vdc Supply, Analog & Relay O/P, DP25B Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Strain Meter
Sub Component
Process Panel Meter
Supply Voltage
10-32 Vdc
Features
Big Bright LED Display
Scaling in Wide Range of Engineering Units
Built-In Excitation
Analog Output Optional
Accuracy± 0.02 %
Analog-to-Digital TechniqueDual slope
ApprovalsCE, EMC 2014/30/EU
CMRR120 dB
Cutout Dimensions1.772 x 3.622 in
Display Note4-digit, 9-segment, 21 mm (0.83") red, amber or green LED (programmable)
Display TypeLED
Form factor1/8 DIN
Height1.89 in
Impedance Input100 MΩ for 100 mV or ± 50 mV range
1 MΩ for 10V or ± 5V range
5 Ω for 20 mA current input
Input Range Note0 to 100 mV, ± 50 mV, 0 to 10V, ± 5V, 0 to 20 mA, 4 to 20 mA
Internal Resolution15 bit
IsolationDielectric strength to 2500V transient per 3 mm spacing based on EN 61010 for 260 Vrms or Vdc
Length6 in
MaterialsPolycarbonate
Max Error Strain/Process± 0.03%
Measurement TypeCurrent, Voltage
MountingPanel
NMRR60 dB
Number of Digits4
Number of Inputs1
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
PolarityAutomatic
Protection240 Vrms max for voltage input ranges
200 mA for current ranges
Reading Rate3/sec
Relative Humidity90% @ 40°C non-condensing
Sampling Rate3 Hz (3 updates/second)
Sensor Excitation24 Vdc @ 25 mA or 12V @ 50 mA
10V @ 120 mA or 5V @ 60 mA
Span Temperature Coefficient± 50 ppm/°C
Step Response2 s
Storage Temperature, Max85 °C
Storage Temperature, Min-40 °C
Supply Power Note240 Vrms overvoltage protection
Warm Up Time30 min
Weight36 g
Width3.78 in
