Code: 778786

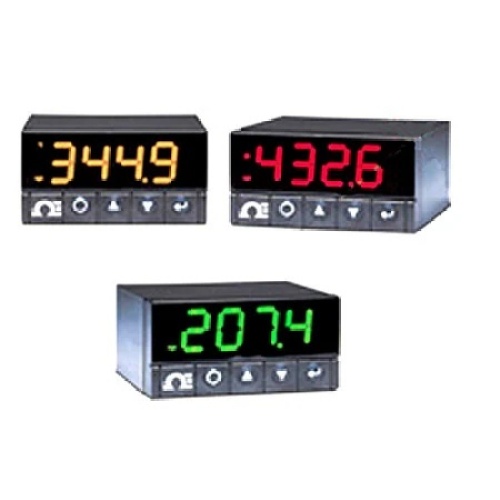

Omega CNIS843 1/8 STR/PR,CNTL
Normally In Stock
Omega CNIS843 1/8 STR/PR,CNTL
Condition: New
Usually ships Same Day or Next Day$775.24
Sale Price
$646.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Temperature/Process Controller, 1/8 DIN, 4 Digit, 9-Segment LED Display, 90 Vac/Vdc to 240 Vac/Vdc Supply, DC Pulse & Relay O/P, i-Series-Strain, Each
Specifications
Manufacturer
Omega Engineering
Component
Strain Meter
Sub Component
Temperature/Process Controller
Supply Voltage
90-240 Vac
Features
High Quality
FREE 5-Year Warranty
High Accuracy 0.03% Rdg
User Friendly, Simple to Configure
Accuracy± 0.03 %
Analog-to-Digital TechniqueDual slope
CMRR120 dB
Decimal Selection0,001, 0,01, 0,1, None
Digital FilterProgrammable
Display Note4-digit 9-segment LED 10.2 mm (0.40")
i32, i16, i16D, i8DV 21 mm (0.83")
i8 10.2 mm (0.40") and 21 mm (0.83")
i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units
Display TypeLED
Electrical ConnectionScrew Terminal
Enclosure RatingsIP65, NEMA Type 4, NEMA Type 4X
Impedance Input10 MΩ for 100 mV
1 MΩ for 1V or 10 Vdc
Input Range Note0 to 100 mVdc,-100 mVdc to 1 Vdc, 0 to 10 Vdc, 0 to 20 mA
Input TypeSingle Ended, Voltage, Current, Strain, Temperature
IsolationPower to Input/Output: 2300 Vac per 1 minute test
For Low Voltage Power Option: 1500 Vac per 1 minute test
Power to Relay/SSR Output: 2300 Vac per 1 minute test
Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test
RS232/485 to Input/Output: 500 Vac per 1 minute test
Length5 in
Linearization PointsUp to 10
Measurement TypeCurrent, Strain, Temperature, Voltage
NMRR60 dB
Number of Digits4
Number of Inputs5
Offset Adjustment-1999 to 9999
Operating Temperature, Max55 °C
Operating Temperature, Min0 °C
PolarityUnipolar
Reading Rate3/sec
Relative Humidity90% RH non-condensing
Resolution10/1µV
RTD Type100/500/1000 Ω Pt
Sampling Rate3 Hz (3 updates/second)
Sensor Excitation24 Vdc @ 25 mA (not available for low-power option)
Set Point AdjustmentMenu Configurable
Step Response0.7 s for 99.9%
Temperature Stability50 ppm/°C
Thermocouple TypeJ, K, T, E, R, S, B, C, N, L
Weight127 g
