Code: 777567

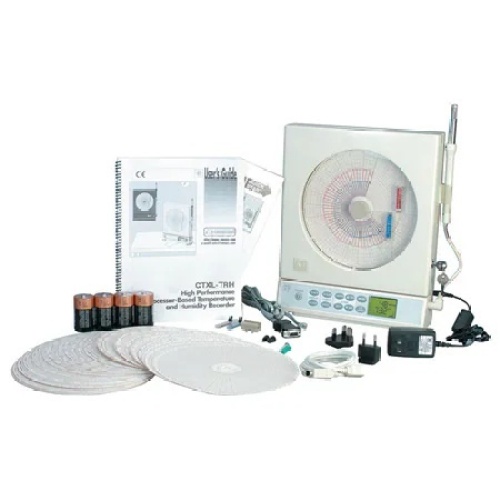

Omega CTXL-TRH-W WHITE, TEMP/HUMIDITY (110/220)
Normally In Stock
Omega CTXL-TRH-W WHITE, TEMP/HUMIDITY (110/220)
Condition: New
CALL FOR LEAD TIME$3115.32
Sale Price
$2596.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Chart Recorder, Circular, Portable/Wireless Universal, 2-CH, Temperature/RH Measurement, -17 °C to 49 °C, Battery Power with Back-Up, 1/7/32 Days Chart Time, 2 Alarm Relays, CTXL Series, Each
Specifications
Manufacturer
Omega Engineering
Data Interface
USB
Measurement Type
Voltage
Component
Recorder
Sub Component
Chart Recorder
Features
CTXL-TRH: Temperature & Relative Humidity with Wired Probe
CTXL-TRH-W-W9: Temperature & Relative Humidity with Wireless Probe
CTXL-DPR: Dual Process Input (Voltage or Current)
CTXL-DTC: Dual Thermocouple Input, J, K or T type programmable from PC
Alarm NoteAlarm Audible: Piezoelectric beeper
ApprovalsFCC, Class A
Battery Size and TypeAlkaline
Chart Diameter203 mm
Chart NoteChart Drive: Stepper Motor
Chart Speed1, 7, 32 Days
ComplianceRoHS 2
Control Output2 SPDT Relay, 2 Voltage Pulse
Display NoteCustom, 4-digit, dual LCD with backlight
Display TypeLCD
MountingBenchtop or Wall Mount
Number of Relays2
Operating Temperature, Max49 °C
Operating Temperature, Min0 °C
Pen TypePen Lift
Pen Type NotePen Drive:Type: Stepper motor, linear screw drive, Deadband: 0.5°C or °F and 3% RH, Pen Lift: Automatic on door opening—pens are door mounted and swing, clear of the chart when door opens
Recording ColorWhite
Recording NoteOut-of-Range Input: Display will flash. Chart motor will continue to run
Relative Humidity2 to 98% RH
Response Time350 ms
Sampling Rate2 to 120 sec
Supply Power TypeAC, Battery
Supply Voltage100 to 240 Vac
Wireless Range NoteOutdoor Line-of-Sight: 90 m
Indoor/Urban : 33.5 m
