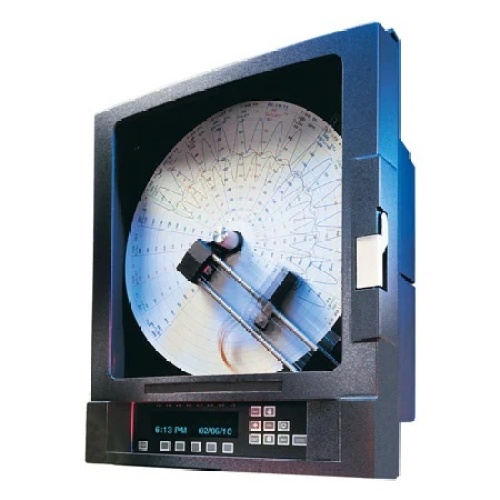

1-, 2-, 3- or 4-Pen Version

Programmable for 254, 280, 305 mm (10, 11 or 12') Charts

Accepts Thermocouple, RTD, V, mV, mA or Switch Signals

40 Character Display

Accuracy± 1 °C (± 1.8 °F)

Accuracy DetailThermocouple: 1°C, Chart Accuracy: 0.3%, Chart Rotation: 0.2 minutes for 24 hours

Alarm NoteAlarm Type: Process high or low, rate rising or falling, Alarm Number: Up to 4 alarms for each of 4 process variables

ApprovalsCE

Battery lifeup to 10 yr

Battery Size and TypeLi-ion

Chart Diameter305 mm

Chart NoteChart Messages: 12

Chart Drive: DC Stepper Motor

Chart Speed6 to 9999 Hours

CMRR>120 dB

Cold Junction Compensation0.04°/°C deviation from 25°C

Current Measurement Range4 to 20 mA

Cutout Dimensions322.58 x 322.58 mm

DeadbandFully adjustable

Display Note2-line, 40-character VFD with 5 mm (0.21") high characters, Display Formats: 3, Operator Messages: 12, Operator Inputs: 12 Keypad: 15 keys for programming and unit operation

Display TypeVFD

Enclosure RatingsIP54, NEMA Type 3

Height425.96 mm

Input NoteInput Isolation: 350 Vac, 500 Vdc

Contact Closure: Open/closed switch sensing without external voltages or resistors

Value Cutoff: None, at Value, to Zero below value, to Zero near Zero

LED Indicators8 User Configurable, Red LED Status Indicator

Length196.85 mm

Measurement Range NoteThermocouple: J: -200 to 1200°C, K: -250 to 1370°C, E: -250 to 1000°C, N: -250 to 1300°C, T: -250 to 400°C, R: 200 to 1700°C, S: 250 to 1750°C, B: 200 to 1800°C, G: 0 to 2300°C, C: 0 to 2300°C, D: 0 to 2300°C, NNM: 0 to 1370°C, PLATINEL II: 0 to 1400°C RTD: -200 to 480°C Current: 0 to 20 mA, 4 to 20 mA Voltage: 0 to 25 mV, 0 to 100 mV, 0 to 1V, 0 to 10V

Measurement TypeThermocouple, RTD, Current, Voltage, Switch Signals

MountingPanel Mount or Wall Mounting

Mounting Orientation± 30 degrees forward/backward of vertical, ± 10 degrees side tilt from vertical

NMRR100 dB @ 60 Hz

Number of Channels1

Operating Temperature, Max50 °C

Operating Temperature, Min0 °C

Panel Depth133.35 mm

Panel Protrusion63.5 mm

Pen TypeFiber tip Marker Assembly

Power Consumption60 VA

Programmable FunctionsExponential Function, Square Root Function

Recording NoteRecorded Values: 20 values can be trended/recorded, Recording Methods: Drag pen simulation, instantaneous value, connect the values, average value, connect the averages\

Relative Humidity10 to 90% RH, non-condensing

RTD Type100 Ω Pt sensor

α= 0.00385

Sampling Rate2 Scans/sec

Sensor Break DetectionSensor Fault Detection: Sensor break on all T/Cs, RTDs, 1V, 1 to 5V, 4 to 20 mA and mV ranges

sensors high and low on all inputs, 5% above or below range

Sensor Break: Up-scale or down-scale

Standard Limits of ErrorError Limit: Measurement Error: ±0.025% of measurement span reference accuracy, Cold-Junction Compensation Error: ±0.2°C @ 25°C, Linearization Error: T±0.25°C typical, ±0.5°C worst case with exceptions

RTD: ±0.1°C typical, ±0.3°C worst case, Ambient Temperature Error: ±0.01% of span per °C

Measurement Error: ±0.025% of measurement span reference accuracy

Storage Temperature, Max65 °C

Storage Temperature, Min-40 °C

Supply Power Note90 to 264 Vac, 50/60 Hz

Supply Power TypeAC

Supply Voltage90 to 264 Vac

Temperature Measurement RangeJ: -130 to 760°C, K: -130 to 1370°C, T: -200 to 400°C, R: 0 to 1650°C, S: 0 to1649°C, B: 100 to 1824°C, RTD: -210 to 440°C

Thermocouple TypeJ, K, T, R, S, N, E, B, C, G, D

Time Accuracy1 min/month Typically, 4 min/month worst case

Vibration0.3 to 100 Hz @ 0.2 g

Voltage Measurement Range0 to 5 Vdc

Weight11.34 kg

Width358.65 mm

Wire Code Option2- or 3- Wire
