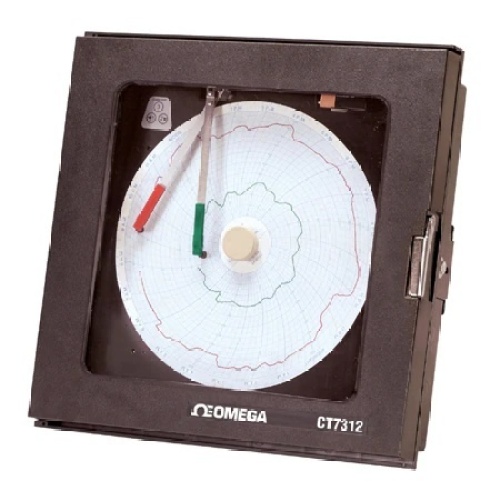

Omega CT7310-D DUAL PEN RECORDER
Normally In Stock
Code: 777554
Omega CT7310-D DUAL PEN RECORDER
Condition: New
Usually ships Same Day or Next Day$2330.24
Sale Price
$1941.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Process Recorder, Circular, Economical, 2-CH, TC, RTD, mA, V Measurement, Battery Power with Back-Up, 4 hours to 168 hours Chart Time, LED Display, CT7300 Series, Each
Specifications
Manufacturer
Omega Engineering
Measurement Type
Thermocouple
Measurement Type
Current
Measurement Type
Voltage
Component
Recorder
Measurement Type
RTD
Sub Component
Process Recorder
Features
Universal Input
2 Pen Circular Process Recorder, 254 mm (10' Chart)
Quick, Easy Setup
Easy-to-Replace Paper Chart with Magnetic Hub
Accuracy± 0.5 %
Accuracy DetailChart Recording: ±0.5% of span (100-division span)
Alarm modesActive High Output, Active Low Output, Adjustable, Band, High/Low, Manual reset
ApprovalsCE
Battery life48 hr
Battery Size and TypeAlkaline 9V
Chart Diameter254 mm
Chart SpeedConfigurable—4, 8, 12, 24, 48 and 168 hours of rotation
CMRR>120 dB @ 60 Hz
Current Measurement Range4 to 20 mA
Cutout Dimensions323 x 323 mm
DeadbandSet at 2 units
activation is safe-sided
Height356 mm
Input NoteInput Filtering: Up to 120 sec
Input Isolation: PV inputs isolated from all alarm outputs
Length97 mm
Measurement Range NoteThermocouple: J: -130 to 760°C, K: -130 to 1370°C, T: -200 to 400°C, R: 0 to 1650°C, S: 0 to1649°C, B: 100 to 1824°C
RTD: -210 to 440°C
Current: 4 to 20 mA
Voltage: 0 to 5 Vdc
Measurement TypeThermocouple, RTD, Current, Voltage
MountingVertical Mount (±20 Degrees), Horizontal Mount (±10 Degrees)
Mounting Orientation± 20 degrees of vertical, ± 10 degrees of horizontal
Number of Channels2
Operating Temperature, Max60 °C
Operating Temperature, Min0 °C
Pen TypeInk Style
Power Consumption15 VA
Relative Humidity0 to 90% RH, non-condensing
RTD Type100 Ω Pt Sensor
Sensor Break DetectionError Protection: De-Energized During Sensor Break
Sensor Break: <10 sec
Standard Limits of ErrorError Limit: Cold-Junction Compensation Error: ±0.2°C/°F @ 25°C, Ambient Temperature Error Limit: 0.01% of span per °C
Storage Temperature, Max65 °C
Storage Temperature, Min-40 °C
Supply Power Note110/220 Vac, 50/60 Hz
Supply Power TypeAC
Supply Voltage110/220 Vac
Switch Rating1 A @ 120 Vac
Switch Rating NoteDPDT, 1.0 A @ 120 Vac resistive
Switch TypeDPDT
Temperature Measurement RangeJ: -130 to 760°C, K: -130 to 1370°C, T: -200 to 400°C, R: 0 to 1650°C, S: 0 to1649°C, B: 100 to 1824°C, RTD: -210 to 440°C
Thermocouple TypeJ, K, T, R, S, B
Vibration0.3 to 100 Hz @ 0.2 g
Voltage Measurement Range0 to 5 Vdc
Weight3 kg
Width356 mm
Wire Code Option3- Wire
