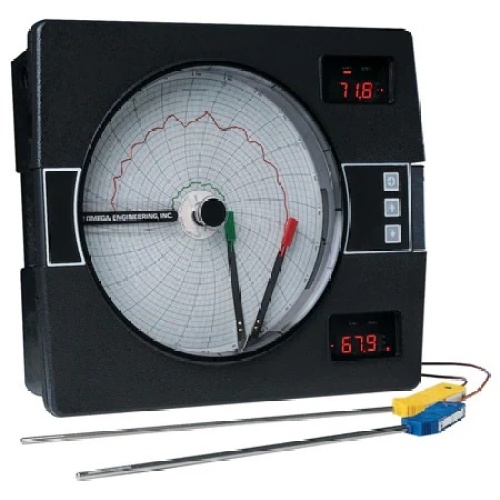

1 or 2 Pen Versions, 250 mm (10') Chart

mv, V, mA, Thermocouple or RTD Inputs

Programmable Inputs

Optional Alarms

Alarm modesActive High Output, Active Low Output, Adjustable

Battery lifeup to 5 yr

Chart Diameter254 mm

Chart NoteChart Span: Bottom and top of span, -9999 to 9999 units

Chart Drive: DC Stepper Motor

Chart Drive: Stepper Motor

Chart Speed0.1 to 999.9 Hours

CMRR90 dB minimum

24 Vac maximum for RTD input

15 Vac maximum for other inputs

Current Measurement Range4 to 20 mA

Cutout Dimensions321 x 343 mm

DeadbandRecording: 0.3%

Display NoteDigital Displays: 2 possible: 1 per installed pen

(4) 7-segment digits, 14 mm (0.56”) high, red LEDs, automatic (-) positioning, decimal point positioning Keypad: Located on front cover, tactile feedback membrane keys, Display/Record Filter: 1 to 20 Scans. Alarm Display: 2 alarm indications possible per pen

ALRM1 and ALRM2

red LEDs

single ALRM indication provided for controller pens

Display TypeLED

EMC StandardIEC 61000-4-2

Filter1 to 20 Scans

Height335 mm

LED IndicatorsLED indicates Out 1, Out 2, Man, Ramp, Soak, Seg 1 through Seg 6, process units as applicable

Length92 mm

MaterialsPlexiglass

Measurement Range NoteThermocouple: J: 0 to 760°C, K: 0 to 1360°C, T: -220 to 400°C, E: 0 to 750°C, N: 0 to 1300°C, R: 200 to 1650°C, S: 200 to 1650°C, B: 200 to 1800°C, C: 200 to 2300°C RTD: -140 to 400°C Current: 4 to 20 mA Voltage: 0 to 25 mV, 0 to 50 mV, 10 to 50 mV, 0 to 5 V, 1 to 5 V

Measurement TypeThermocouple, RTD, Current, Voltage

NMRR85 db @ 60 Hz or greater

Operating Temperature, Max55 °C

Operating Temperature, Min0 °C

Pen TypeDisposable Fiber tip

Power Consumption25 VA

Relative Humidity0 to 90% RH, non-condensing

ResolutionPen Resolution: 0.15%

Response Time20 sec

RTD Type100 Ω Pt sensor

α= 0.00385

Sampling Rate1 Scan/sec

Sensor Break DetectionSensor Fault Detection: Displays “Hi” or “Lo” process input (10% above or below range) and sensor break “SnSr”

pen action on error condition is user configurable to 0 or 100% of chart span

on/off outputs go “off”

proportional outputs go to user-defined value from 0 to 100%

Standard Limits of ErrorError Limit: Measurement Error Limit: Thermocouple Types J, K, T, E, N and RTD: ±0.25% of reading + 1° @ 25°C (77°F)

Type R, S, B, C Thermocouples: ±0.25% of span @ 25°C (77°F)

mVdc and Vdc: ±0.25% of scaled span plus 1 least-significant digit Ambient Temperature Error Limit: 0.01% of span per °C (1.8°F) deviation from 25°C (77°F) Process Value Output Error Limit: ±0.5% of span Record Error Limit: ±0.5% of chart span or better, typically

±1.0% of chart span maximum

Calibration Shift: Self-compensating for ambient temperature

all calibration values are stored in memory

Process Value Output Error Limit: ±0.5%

Record Error Limit: ±0.5%

Storage Temperature, Max65 °C

Storage Temperature, Min-40 °C

Supply Power Note115 Vac ±10%, 50/60 Hz

Supply Power TypeAC

Switch Rating2 A @ 115 Vac, 1 A @ 230 Vac

Switch TypeSPST

Temperature Measurement RangeJ: 0 to 760°C, K: 0 to 1360°C, T: -220 to 400°C, E: 0 to 750°C, N: 0 to 1300°C, R: 200 to 1650°C, S: 200 to 1650°C, B: 200 to 1800°C, C: 200 to 2300°C, RTD: -140 to 400°C

Thermocouple TypeJ, K, T, R, S, N, E, B, C

Vibration0.5 to 100 Hz @ 0.2 g

Voltage Measurement Range0 to 25 mV, 0 to 50 mV, 10 to 50 mV, 0 to 5 V, 1 to 5 V

Weight9.1 kg

Width384 mm

Wire Code Option2- or 3- Wire
