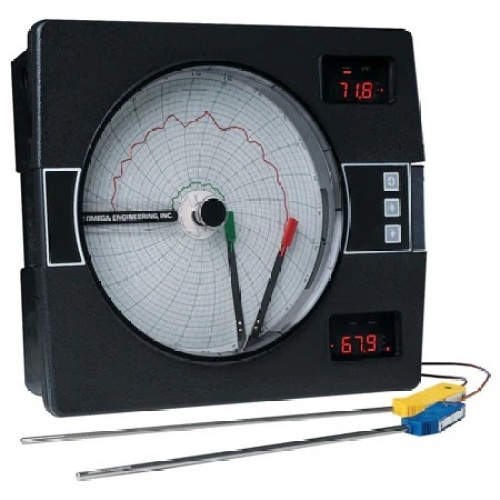

Omega CT7102 RCDR,1P,2RLYS,W/CHART215101 CE
Normally In Stock
Code: 777546
Omega CT7102 RCDR,1P,2RLYS,W/CHART215101 CE
Condition: New
Usually ships Same Day or Next Day$4648.42
Sale Price
$3873.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Circular Recorder with Digital Display, Programmable Universal Input, 1-CH, TC, RTD, mA, V Measurement, 0.1 hours to 999.9 hours Chart Time, 2 Alarm Relays, CT7000 Series, Each
Specifications
Manufacturer
Omega Engineering
Measurement Type
Thermocouple
Measurement Type
Current
Measurement Type
Voltage
Component
Recorder
Measurement Type
RTD
Sub Component
Circular Recorder
Features
1 or 2 Pen Versions, 250 mm (10') Chart
mv, V, mA, Thermocouple or RTD Inputs
Programmable Inputs
Optional Alarms
Alarm modesActive High Output, Active Low Output, Adjustable
Battery lifeup to 5 yr
Chart Diameter254 mm
Chart NoteChart Span: Bottom and top of span, -9999 to 9999 units
Chart Drive: DC Stepper Motor
Chart Drive: Stepper Motor
Chart Speed0.1 to 999.9 Hours
CMRR90 dB minimum
24 Vac maximum for RTD input
15 Vac maximum for other inputs
Current Measurement Range4 to 20 mA
Cutout Dimensions321 x 343 mm
DeadbandRecording: 0.3%
Display NoteDigital Displays: 2 possible: 1 per installed pen
(4) 7-segment digits, 14 mm (0.56”) high, red LEDs, automatic (-) positioning, decimal point positioning
Keypad: Located on front cover, tactile feedback membrane keys, Display/Record Filter: 1 to 20 Scans.
Alarm Display: 2 alarm indications possible per pen
ALRM1 and ALRM2
red LEDs
single ALRM indication provided for controller pens
Display TypeLED
EMC StandardIEC 61000-4-2
Filter1 to 20 Scans
Height335 mm
LED IndicatorsLED indicates Out 1, Out 2, Man, Ramp, Soak, Seg 1 through Seg 6, process units as applicable
Length92 mm
MaterialsPlexiglass
Measurement Range NoteThermocouple: J: 0 to 760°C, K: 0 to 1360°C, T: -220 to 400°C, E: 0 to 750°C, N: 0 to 1300°C, R: 200 to 1650°C, S: 200 to 1650°C, B: 200 to 1800°C, C: 200 to 2300°C
RTD: -140 to 400°C
Current: 4 to 20 mA
Voltage: 0 to 25 mV, 0 to 50 mV, 10 to 50 mV, 0 to 5 V, 1 to 5 V
Measurement TypeThermocouple, RTD, Current, Voltage
NMRR85 db @ 60 Hz or greater
Operating Temperature, Max55 °C
Operating Temperature, Min0 °C
Pen TypeDisposable Fiber tip
Power Consumption25 VA
Relative Humidity0 to 90% RH, non-condensing
ResolutionPen Resolution: 0.15%
Response Time20 sec
RTD Type100 Ω Pt sensor
α= 0.00385
Sampling Rate1 Scan/sec
Sensor Break DetectionSensor Fault Detection: Displays “Hi” or “Lo” process input (10% above or below range) and sensor break “SnSr”
pen action on error condition is user configurable to 0 or 100% of chart span
on/off outputs go “off”
proportional outputs go to user-defined value from 0 to 100%
Standard Limits of ErrorError Limit: Measurement Error Limit: Thermocouple Types J, K, T, E, N and RTD: ±0.25% of reading + 1° @ 25°C (77°F)
Type R, S, B, C Thermocouples: ±0.25% of span @ 25°C (77°F)
mVdc and Vdc: ±0.25% of scaled span plus 1 least-significant digit
Ambient Temperature Error Limit: 0.01% of span per °C (1.8°F) deviation from 25°C (77°F)
Process Value Output Error Limit: ±0.5% of span
Record Error Limit: ±0.5% of chart span or better, typically
±1.0% of chart span maximum
Calibration Shift: Self-compensating for ambient temperature
all calibration values are stored in memory
Process Value Output Error Limit: ±0.5%
Record Error Limit: ±0.5%
Storage Temperature, Max65 °C
Storage Temperature, Min-40 °C
Supply Power Note115 Vac ±10%, 50/60 Hz
Supply Power TypeAC
Switch Rating2 A @ 115 Vac, 1 A @ 230 Vac
Switch TypeSPST
Temperature Measurement RangeJ: 0 to 760°C, K: 0 to 1360°C, T: -220 to 400°C, E: 0 to 750°C, N: 0 to 1300°C, R: 200 to 1650°C, S: 200 to 1650°C, B: 200 to 1800°C, C: 200 to 2300°C, RTD: -140 to 400°C
Thermocouple TypeJ, K, T, R, S, N, E, B, C
Vibration0.5 to 100 Hz @ 0.2 g
Voltage Measurement Range0 to 25 mV, 0 to 50 mV, 10 to 50 mV, 0 to 5 V, 1 to 5 V
Weight9.1 kg
Width384 mm
Wire Code Option2- or 3- Wire
