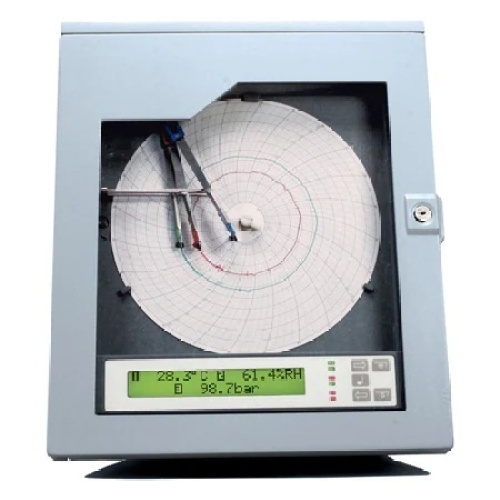

Accepts Thermocouple, RTD, Vdc, and mA DC Inputs

High Accuracy and Stability

User Configurable via Front-Panel Keypad

Easy-to-Use Menu-Driven Interface for Rapid Configuration and Calibration

Accuracy± 0.2 %

Accuracy DetailThermocouple: ±0.25%, RTD, Low Range (-200 to 200°C): ±0.2°C, RTD, High Range (200 to 850°C): ±0.8°C, Voltage: ±0.2%, Current: ±0.2% Linearization: "T/C Types J, K, T, N, E: ±0.1°C, -50 to 200°C, ±1°C maximum, T/C Types R and S: ±0.2°C, -50 to 200°C, ±1°C maximum, T/C Type B: ±1°C maximum RTD: ±0.1°C, -200 to 850°C"

Additional Features 1Transmitter Power Supply

ApprovalsCE

Chart Diameter244 mm

Chart NoteChart Drive: DC Stepper Motor

Chart Speed1 to 24 hours in steps of one hour, 2 to 31 days in steps of 1 day

Current Measurement Range± 20 mA

Cutout Dimensions288 x 356 mm

Data protectionAccess by password, Internal hardware jumper lock, Lockable Door

Deadband0 to 10%

Display Note2 line x 20 character dot matrix liquid crystal with backlight and automatic temperature compensation

9.6 mm (0.37") character height. Alarm Display: Relay status shown by red and green front panel LEDs

Display TypeLCD

Enclosure RatingsIP55, NEMA Type 12

Height396 mm

Input NoteInput Isolation: Optoelectronic on 2 and 3 input models 500 Vrms channel to-channel, 500 Vrms channel-to-ground

Input Protection±50 Vdc

Snubber Network: 22 nF and 100 Ω across each contact

Input ResistanceThermocouple: 10 MΩ

±2 mA: 200 Ω

±20 mA: 20 Ω

±2V, ±20V: >1 MΩ

Length171 mm

MaterialsSteel, GF Polyester, Acrylic

Measurement Range NoteThermocouples to BS4937 (type B minimum temp 200°C) Current: ±2 mA, ±20 mA Voltage: ±2V, +20 Vdc

Measurement TypeThermocouple, RTD, Current, Voltage

MountingPanel Mounting or Surface Mounting

Operating Temperature, Max55 °C

Operating Temperature, Min0 °C

Pen TypePen Lift

Pen Type NotePowered, activated from front panel

chart fast time advance possible with pens raised

Power Consumptionmax 25 W

Relative Humidity0 to 90% RH, non-condensing

ResolutionPositioning Resolution: >0.1%

Response Time4.5 sec

RTD Type100 Ω Pt sensor

α= 0.00385

Sensor Break DetectionThermocouple Burn-Out: Pull-Up or Pull-Down, Selectable

Sensor Fault Action: Software selectable from: high alarm/low alarm/deviation alarm/control relay (high)/control relay (low)

relays de-energize in alarm state

assignable to any channel

Sensor/Transmitter Power12/24 Vdc @ 25 mA

Span, Min5°C thermocouples K, J, T, E, N and RTD

50°C other thermocouple types, 50 mV, 200 mA

Standard Limits of ErrorError Limit: Cold-Junction Compensation Error: ±0.02°C/°C

Calibration Shift: ±10°C

Supply Power TypeAC

Switch Rating6 A @ 30 Vdc/250 Vac

Switch Rating NoteType: SPDT

30 Vdc or 250 Vac @ 6 A maximum

150 W DC, 1660 Vac non-inductive

Switch TypeSPDT NO/NC, Selectable

Temperature Measurement RangeTo BS 4937 - International thermocouple reference tables

Temperature Stability±0.02% FS/°C

Thermocouple TypeJ, K, T, R, S, N, E, B

Voltage Measurement Range-2 to 20 Vdc

Width336 mm

Wire Code Option3- Wire
