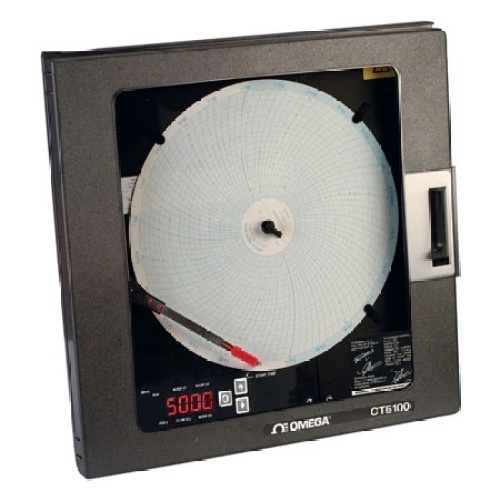

254 mm (10') Chart

1- or 2-Pen Versions,

Thermocouple, RTD, dc Current, or Voltage Input

Programmable Inputs

Accuracy± 0.5 %

Accuracy DetailChart Recording: 0.5% of chart span reference accuracy, Chart Rotation: ±0.5% of rotation time, assuming all backlash removed, Chart Rotation: ±0.5%, Chart Speed: ±1%

Approvals NoteSafety: UL Approved for USA:UL 1092, UL 916 and QUXY, pending UL Certified for Canada:CSA Spec 142, pending Limit/Device: FM, pending

Chart Diameter254 mm

Chart NoteChart Span: Bottom and top of span, -9999 to 9999 units

Chart Drive: DC Stepper Motor

Chart Drive: Stepper Motor

CMRR>120 dB @ 50/60 Hz, 260 Vac max

Cold Junction Compensation0.04°/°C deviation from 25°C

Conduit Entrance3 Openings on the Right Side

Current Measurement Range0 to 20 mA

Cutout Dimensions322.58 x 322.58 mm

Data protectionEEPROM Storage

Display Note4-digit, 14 mm H (0.56"), red, 7-segment, LED display, Display Modes: Normal: process value(s) or blank Keypad: 3 keys for programming and unit operation

Display TypeLED

Enclosure RatingsIP54, NEMA Type 3

Height355.6 mm

Impedance Input>100 MΩ for T/C and mV inputs, 100 kΩ for 5 V inputs, 4.7 Ω for µA inputs

Input NoteInput Correction: Offset adjustment: 999 to 999 units

Input Isolation: 350 Vac, 500 Vdc

LED Indicators5 Red LED Alarm Status Indicators, 1 green LED pen 2 indicator

Length96.5 mm

MaterialsNoryl, Acrylic

Measurement Range NoteThermocouple: J: 0 to 760°C, K: 0 to 1360°C, T: -200 to 400°C, R: 200 to 1650°C, S: 200 to 1650°C RTD: -140 to 400°C Current: 0 to 20 mA, 4 to 20 mA Voltage: 0 to 25 mV, 0 to 50 mV, 10 to 50 mV, 0 to 5 V, 1 to 5 V

Measurement TypeThermocouple, RTD, Current, Voltage

MountingPanel Mount or Wall Mounting

NMRR85 db @ 60 Hz or greater

Operating EnvironmentReference Operating Condition: 25 °C

Operating Temperature, Max50 °C

Operating Temperature, Min0 °C

Panel Depth64 mm

Panel Protrusion33 mm

Pen TypeDisposable Fiber tip

Power Consumption18 VA

Relative Humidity10 to 90% RH, non-condensing

RTD Type100 Ω Pt sensor

α= 0.00385

Sampling Rate1 Scan per second for Non-RTD inputs

1 Scan per 1.2 seconds for RTD inputs

Sensor Input Configuration150 µA

Standard Limits of ErrorError Limit: Cold-Junction Compensation Error: ±0.2°C @ 25°C, Linearization Error: T/Cs: ±0.25°C typical, ±0.5°C worst case , RTDs: ±0.1°C typical, ±0.3°C worst case, Ambient Temperature Error: ±0.01% of span per °C deviation from 25°C

Measurement Error: Type J, K, T, R, S and RTD: ±0.25% of span ±1 degree

mA, mV and Vdc: ±0.25% of scaled span plus 1 leastsignificant digit

Storage Temperature, Max65 °C

Storage Temperature, Min-40 °C

Supply Power NoteLine Voltage: 90/264 Vac, 50/60 Hz

optional: 20 to 50 Vac, 50/60 Hz, or 22 to 65 Vdc

Supply Power TypeAC

Supply Voltage90 to 264 Vac

Switch Rating5 A @ 115 Vac

Switch Rating NoteRelays: SPDT

contacts rated 5 A resistive @ 115 Vac,2.5 A resistive @ 230 Vac, 1⁄8 hp @ 230 Vac (single phase),250 VA @ 115/230 Vac

Switch TypeSPDT NO/NC, Selectable

Temperature Measurement RangeJ: 0 to 760°C, K: 0 to 1360°C, T: -200 to 400°C, R: 200 to 1650°C, S: 200 to 1650°C, RTD: -140 to 400°C

Thermocouple TypeJ, K, T, R, S

Voltage Measurement Range0 to 25 mV, 0 to 50 mV, 10 to 50 mV, 0 to 5 V, 1 to 5 V

Weight8.8 kg

Width355.6 mm

Wire Code Option2- or 3- Wire
