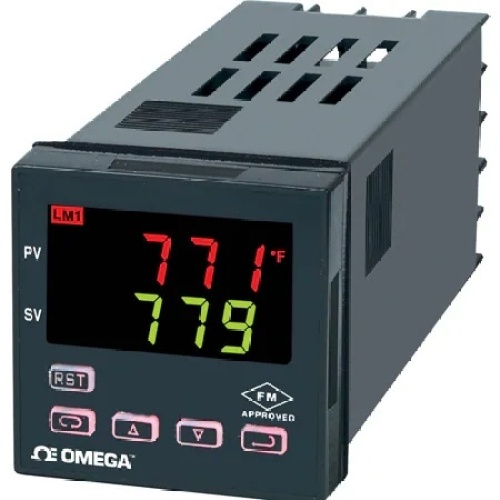

Dual Display

FM-Approved Limit

Universal Inputs

Illuminated Keys

Accuracy± 0.25 %

Accuracy Detail±0.25% of span, ±1 least significant digit

Additional Features 1None

Bezel Size48 mm

Cutout Dimensions45 x 45 mm

DIN Rail Size0.0625 mm

Display Size7.62 mm (0.30 in)

Display Type4 Digit LED

Display Type NoteTwo 4-digit, 7-segment, 7.62 mm H (0.3") LEDs

Form factor1/16 DIN

Input TypeThermocouple, RTD, mA, Voltage

Measuring RangeThermocouple Type K: -200 to 2500°F Type J: -100 to 1600°F Type T: -350 to 750°F Type E: -100 to 1800°F Type N: -100 to 2372°F Type R: 0 to 3200°F Type S: 0 to 3200°F Type B: 75 to 3308°F Type L(J DIN): -100 to 1600°F Type C: 0 to 4208°F RTD (2 wire) Pt100 RTD (0.00385): -200 to 875°C Pt100 RTD (0.00392): -200 to 875°C RTD, 120 Ω Nickel (0.00628): -80 to 320°C RTD, Pt1000 (0.00385): -200 to 875°C Process Current 0 to 20 mA, 4 to 20 mA: 1999 to 9999 Process Voltage 0 to 10Vdc, -10 to 10 Vdc, -10 to 10 mVdc: 1999 to 9999

Memory BackupNon-Volatile

Number of Inputs1

Operating Temperature, Max55 °C

Operating Temperature, Min-10 °C

Output DetailRelay Control Output Ratings: Resistive: SPST, 3 A @ 240 Vac Inductive: 1.5 A @ 240 Vac

Panel Depth133 mm

Panel Thickness6.35 mm

Power Consumption5 VA

Supply Power Note100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz

single phase

132 to 240 Vdc, nominal, 10 to 20% Selectable Input: 10 thermocouple, 4 RTD, DC voltage or DC current

Supply Power TypeAC

Supply Voltage100 to 240 Vac

Temperature Sensor TypeThermocouple

Weight227 g
