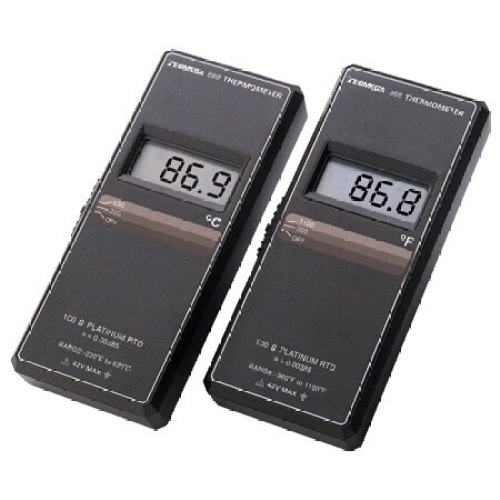

Omega 869C HAND HELD DIGITAL THERM
Normally In Stock
Code: 776992
Omega 869C HAND HELD DIGITAL THERM
Condition: New
Usually ships Same Day or Next Day$979.16
Sale Price
$815.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
RTD Thermometer, High Accuracy, 200 °C ± 0.3 °C ± 1.5 °C, 1100 °C ± 1 °C ± 2 °C, 200 °C to 100 to +199.9 °C -199 °C to 100.1 °C, 1100 °C -100 °C to 630 °C -220 °C to +101 °C, Each
Specifications
Component
Temperature Meter
Manufacturer
Omega Engineering
(Instrument-Sensor) Supply Voltage
9 Vdc
Features
Each Unit Comes with Certificate Stating NIST Traceability and ANSI/Z540-1-1994 Compliance
3- and 4-wire RTD’s
Accurate
0.1° and 1° Resolution
Battery life500 hr
Display NoteDisplay Units : °C or °F
Display Type Note3 1⁄2 digit LCD, 13 mm (0.5") height
polarity, decimal point, open sensor and overrange indication
Height160 mm
Lead Resistance, Max4-wire: 50 Ω max
3-wire: 10 Ω max
Length31 mm
Measuring Temperature Range, Max630 °C
Measuring Temperature Range, Min-100 °C
Operating Temperature, Max50 °C
Operating Temperature, Min-10 °C
Operating Temperature NoteOperating: -10 to 50°C (14 to 122°F), less than 80% RH, up to 35°C
Relative Humidity, Max0.9
Relative Humidity, Min0%
Repeatability<0.2 °F
Sampling Rate1.5 Hz (1.5 updates/second)
Storage Temperature, Max60 °C
Storage Temperature, Min-35 °C
Storage Temperature Note-35 to 60°C (-31 to 140°F), less than 90% RH, up to 35°C
Supply Power NoteMaximum Common Mode Voltage: 42V peak
Supply Voltage9 Vdc
Temperature Accuracy± 0.3 °C
Temperature Accuracy Note200°C: Accuracy: ± 0.3°C
± 1.5°C
1100°C: Accuracy: ± 1°C
± 2°C
Includes DIN 43760 conformity (no points), repeatability, temperature coefficient (18 to 28°C ambient), time stability (1 year) and errors with up to 50 Ω of resistance in each lead
excluded probe errors
Temperature Coefficient18 to 28°C (64 to 82°F)
included in accuracy specification
less than 18°C (64°F) or greater than 28°C (82°F) less than ± (0.015°C)/°C
Temperature Resolution0.1 °C
Temperature Resolution Note200°C:
Resolution: 0.1°C
1100°C:
Resolution: 1°C
Temperature Sensor TypeRTD
Temperature Sensor Type Note3- or 4-wire 100 Ω Platinum RTD a=0.00385
Weight210 g
Width69 mm
