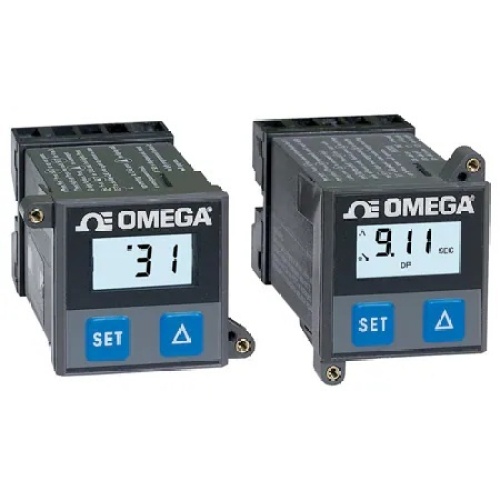

Omega CN1A-RTD-24V TEMPERATURE CONTROLLER CE
Normally In Stock
Code: 776958
Omega CN1A-RTD-24V TEMPERATURE CONTROLLER CE
Condition: New
Usually ships Same Day or Next Day$433.22
Sale Price
$361.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
On/Off Temperature Controller, Temperature, RTD, 1 I/P, Mech Relay, 1 O/P, 1/16 DIN, AC/DC, 2.5 Digit Single Display, Alarm Output, CN1A, Each
Specifications
Component
Temperature Controller
Manufacturer
Omega Engineering
(Instrument-Sensor) Supply Voltage
10 - 32 Vac/Vdc
Features
Dual Outputs
User Selectable Input from 4 Thermocouple Types or RTD Input
10 Programmable Alarm Options
Reverse (Heat) or Direct (Cool) Control
Additional Features 1Alarm Output
Control OutputSPDT Relay
Cutout Dimensions45 x 45 mm
Display Type2.5 Digit LCD
Form factor1/16 DIN
Height48 mm
Length89 mm
Measurement TypeTemperature
Memory BackupEEPROM
Number of Inputs1
Operating Temperature, Max50 °C
Operating Temperature, Min-10 °C
Output DetailMechanical Relay
SPDT relay, rated @ 3 A, 240 Vac
Alarm Output-SPST N.O. relay, rated @ 3 A, 240 Vac
Output SignalNone
Programmable Functionsalarm, °C/°F, control action, hysteresis, offset, password, sensor type, setpoint limits
Storage Temperature, Max85 °C
Storage Temperature, Min-20 °C
Supply Power Note10 to 32 Vac/Vdc @ 60 mA maximum, 90 to 260 Vac, 50/60 Hz @ 1.5 Va maximum
Weight205 g
Width48 mm
