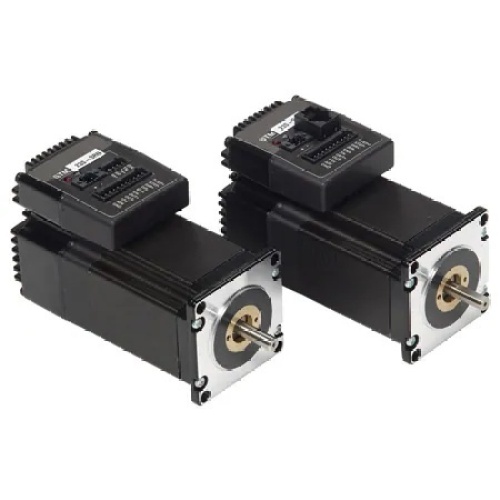

Omega STM24QF-3AN INTEGRATED STEPPER MOTOR
Normally In Stock
Code: 776941
Omega STM24QF-3AN INTEGRATED STEPPER MOTOR
Condition: New
Usually ships Same Day or Next Day$1442.78
Sale Price
$1202.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Integrated Stepper Drive/Motor with Advanced Feature & Control Option, NEMA 24, Single Shaft, 340 oz-in Max Torque, RS232, Stand Alone Programming, STM Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Stepper Motor
Features
Amplifier TypeDual H-Bridge, 4 Quadrant
Mechanical Form-Factor & Load Capacity
Rotor Inertia: 0.0037 oz-inch²
Motion Precision & Smoothness
Microstep Resolution: Software selectable from 200 to 51200 steps/rev in increments of 2 steps/rev
Anti-Resonance: Raises the system damping ratio to eliminate midrange instability and allow stable operation throughout the speed range and improves settling time
Torque Ripple Smoothing: Allows for fine adjustment of phase current waveform harmonic content to reduce low-speed torque ripple in the range 0.25 to 1.5 rps
Microstep Emulation: Performs high resolution stepping by synthesizing fine microsteps from coarse steps (step and direction mode only)
Command Signal Smoothing: Software configurable filtering reduces jerk and excitation of extraneous system resonances (step and direction mode only)
Operating Temperature, Max
50 °C
Operating Temperature, Min
-20 °C
Process Temperature, Max
40 °C
Process Temperature, Min
0 °C
Process Temperature Note
0 to 40°C (32 to 104°F) (mounted to suitable heatsink)
Protection
Over-voltage, undervoltage, over-temp, motor/wiring shorts (phase-to-phase, phase-to-ground)
Relative Humidity
90 % non-condensing
Supply Power Note
External 12 to 70 Vdc power supply required
Supply Voltage
12 to 70Vdc
