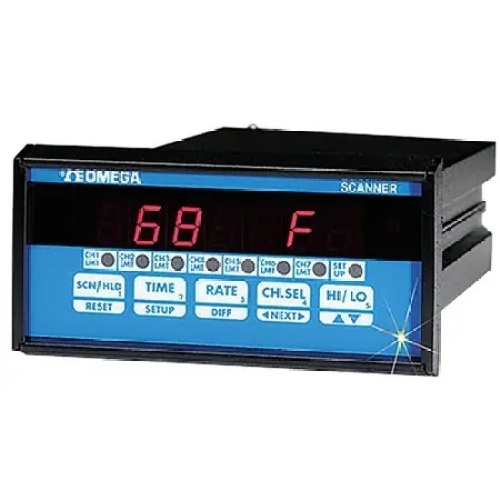

Omega CN1504TC 4 CHANNEL CONTROLLER
Normally In Stock
Code: 776883
Omega CN1504TC 4 CHANNEL CONTROLLER
Condition: New
Usually ships Same Day or Next Day$1259.15
Sale Price
$1049.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Process Controller, 4-CH, J/K/T/E Thermocouple I/P, 1/8 DIN, 4 Digit, 7-Segment LED Display, 120 Vac Supply, 5 V Drive @ 50 mA Open-Collector O/P, CN1504 Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Process Controller
(Instrument-Sensor) Supply Voltage
10 Vdc
Features
1/8 DIN Cutout
ON/OFF and Full PID Control
Independent 7-Segment Ramp/Soak Profile for Each Zone
Programmable Heating or Cooling Outputs
Accuracy DetailThermocouple Accuracy
Type J: ±1°C ±1 count
Type K: ±1°C ±1 count
Type T: ±1°C ±1 count
Type E: ±1°C ±1 count
Type R: ±3°C ±1 count
Type S: ±3°C ±1 count
Type B: ±3°C ±1 count
Channel Display TimeProgrammable, 1 to 999 seconds
Cold Junction Error±0.5°C (10 to 45°C)/±0.9°F (50 to 113°F)
Control OutputN/A
Current Accuracy± 0.05%
Cutout Dimensions45 x 22 mm
Data InterfaceN/A
Display Size10 mm (.39 in)
Form factor1/8 DIN
Frequency50/60 Hz
Front Bezel65 H x 117 W x 178 D mm
Input Type NoteJ, K, T, E, R, S, B, thermistor, RTD, 4 to 20 mA loop current, 0 to 10 Vdc, and 0 to 100 mV
Offset0 to 100 mV, 0 to 10 mV, 0 to 20 mA
On/Off DeadbandProgrammable, 0 to FS
Output Detail5 Volts drive @ 50 mA open collector
Proportional Band0 to 100% of span
Ramp and Soak7-segment programmable for each channel
Reset0.00 to 50.00 repeats/minute
ScaleProgrammable, 1 to 30,000
Scan Rate2 channels/sec (non-adjustable)
Supply Power Note120 Vac 50/60 Hz, ±10%, (optional) 220 Vac 50/60 H, 12 Vdc @ 900 mA, ±20%
Voltage Accuracy0.0005
Weight992 g
