Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 776808

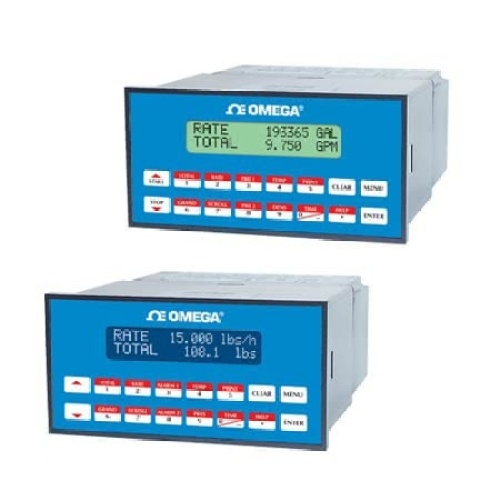

Omega FC-22 MULTI-FLOW COMPUTER CE
Normally In Stock
Omega FC-22 MULTI-FLOW COMPUTER CE
Condition: New
Usually ships Same Day or Next Day$2574.72
Sale Price
$2145.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Multifunction Flow Computer for Liquid/Gas/Steam/Heat, RTD, Voltage, Current, 100 Ω DIN RTD, 85 Vac to 275 Vac, 3-Inputs, 2-Relays, Panel, Black, LCD Display, FC-22 Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Flow Computer
(Instrument-Sensor) Supply Voltage
85 - 275 Vac
Features
Custody Transfer with Audit Trail
Liquid, Gas, Steam, and Heat Flow Equations
Menu Selectable Hardware Inputs/Outputs
Isolated Pulse and Analog Outputs Standard
ApprovalsCE, RoHS Compliance
Control Output2 Relays
Cutout Dimensions5.43 x 2.68 in
Display ColorBlack
Display NoteAlphanumeric, 2 lines, 7.6 mm (0.3") characters, backlit LCD or VFD (specify at time of order)
Enclosure MaterialPlastic
Form factor5.7 x 2.8 in
Frequency Input RangeUp to 20 kHz
Front Panel Dimensions6.18 x 3.43 in
Humidity Range0 to 95% RH non-condensing
Input Current4 to 20 mA, 0 to 20 mA
Input TypeRTD, Voltage, Current
MemoryProgram's Memory
Number of Digits2 line
Number of Inputs3
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
Panel Depth6.5 in
Pulse Input NoteHigh Level Input Pulse: Low = 0 to 1 Vdc
high = 3 to 30 Vdc
Low Level Input Pulse: 10 mV or 100 mV (magnetic pickup)
Storage Temperature, Max85 °C
Storage Temperature, Min-40 °C
Supply Power TypeAC/DC
Switch Rating5A @ 240 Vac
Switch TypeSPDT NO/NC, Selectable
Switch Type NoteMenu assignable for each relay
2 SPDT relays rated 5 A, 240 Vac or 30 Vdc
Contact Flow Engineering for additional information
Temperature Sensor Type100 Ω DIN RTD
