Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 776804

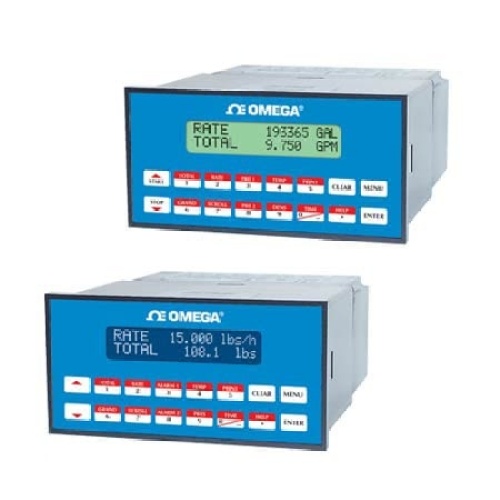

Omega FC-21-NEMA COMPUTER W/NEMA WALL MTG CE
Normally In Stock
Omega FC-21-NEMA COMPUTER W/NEMA WALL MTG CE
Condition: New
Usually ships Same Day or Next Day$2512.58
Sale Price
$2093.82
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Multifunction Flow Computer for Liquid, RTD, Voltage, Current, 100 Ω DIN RTD, 110 Vac, 3-Inputs, 2-Relays, NEMA 4 (IP65) Wall Mount, Black, LCD Display, FC-21 Series, Each
Specifications
(Instrument-Sensor) Supply Voltage
110 VAC
Manufacturer
Omega Engineering
Component
Flow Computer
Features
Custody Transfer with Audit Trail
Liquid, Gas, Steam, and Heat Flow Equations
Menu Selectable Hardware Inputs/Outputs
Isolated Pulse and Analog Outputs Standard
ApprovalsCE, RoHS Compliance
Control Output2 Relays
Cutout Dimensions5.43 x 2.68 in
Display ColorBlack
Display NoteAlphanumeric, 2 lines, 7.6 mm (0.3") characters, backlit LCD or VFD (specify at time of order)
Enclosure MaterialPlastic
Form factor5.7 x 2.8 in
Frequency Input RangeUp to 20 kHz
Front Panel Dimensions6.18 x 3.43 in
Humidity Range0 to 95% RH non-condensing
Input Current4 to 20 mA, 0 to 20 mA
Input TypeRTD, Voltage, Current
MemoryProgram's Memory
Number of Digits2 line
Number of Inputs3
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
Panel Depth6.5 in
Pulse Input NoteHigh Level Input Pulse: Low = 0 to 1 Vdc
high = 3 to 30 Vdc
Low Level Input Pulse: 10 mV or 100 mV (magnetic pickup)
Storage Temperature, Max85 °C
Storage Temperature, Min-40 °C
Supply Power TypeAC/DC
Switch Rating5A @ 240 Vac
Switch TypeSPDT NO/NC, Selectable
Switch Type NoteMenu assignable for each relay
2 SPDT relays rated 5 A, 240 Vac or 30 Vdc
Contact Flow Engineering for additional information
Temperature Sensor Type100 Ω DIN RTD
