Universal Inputs

Accuracy at 25°C: ± 0.5°C temp nominal 0.03% rdg ± 0.03% range process and strain

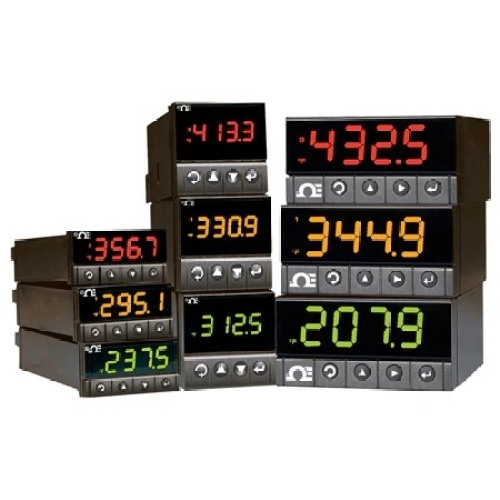

Totally Programmable Color Displays (Visual Alarms)

User-Friendly, Simple to Configure

A/D ConversionDual Slope

Analog Current0 to 20 mA (500 Ω maximum)

CMRR120 dB

Cold Junction Compensation50 ppm/°C

Control CharacteristicsControl Action: Reverse (heat) or direct (cool) Rate: 0 to 399.9 s Reset: 0 to 3999 s Cycle Time: 1 to 199 s

set to 0 for on/off Gain: 0.5 to 100% of span

setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF

Decimal Selection0,001, 0,01, 0,1, None

Digital FilterProgrammable

Display Size46 mm (1.8 in)

Display Type Note4-digit 9-segment LED 10.2 mm (0.40")

i32, i16, i16D, i8DV 21 mm (0.83")

i8 10.2 mm (0.40") and 21 mm (0.83")

i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units

Electrical ConnectionScrew Terminal

Impedance Input10 MΩ for 100 mV

1 MΩ for 1V or 10 Vdc

Input ConfigurationSingle-ended

Isolated Analog Voltage0 to 10 Vdc (max 20 mA)

IsolationIsolation Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test

Current, Max0 to 20 mA (5 Ω load)

Measurement TypeCurrent, Strain, Voltage

NMRR60 dB

Number of Control Outputs2

Number of Inputs1

Offset Adjustment-1999 to 9999

PolarityUnipolar

Ramp SetpointRamp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF

Remote SetpointNone

Sampling Rate3 Hz (3 updates/second)

Set Point AdjustmentMenu Configurable

Span Adjustment0.001 to 9999 counts

Step Response0.7 sec for 99.9%

Temperature StabilityTemperature Stability: RTD: 0.04°C/°C

TC @ 25°C (77°F): 0.05°C/°C

Cold Junction Compensation Process: 50 ppm/°C

Thermocouple Lead Resistance, Max100 Ω

TuningAutotune
