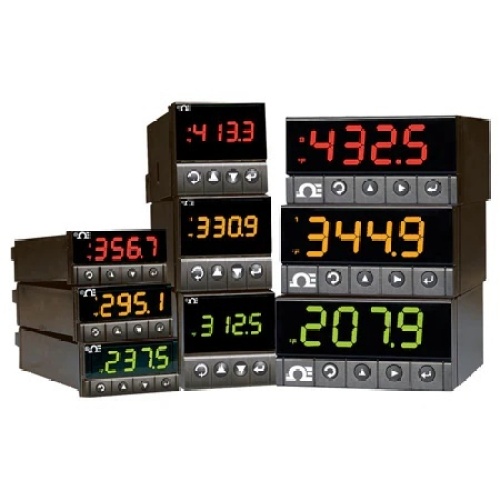

Universal Inputs

User-Friendly, Simple to Configure

High Quality

Powerful Features

A/D ConversionDual slope

Additional Features 1Programmable 3 Color Display

ApprovalsUL, C-UL, UKCA, CE per 2014/35/EU

CMRR120 dB

ConfigurationSingle-ended

Control ActionAction: Reverse (heat) or direct (cool)

Control OutputSPDT Relay, Alarm

Cutout Dimensions45 mm

Digital FilterProgrammable

Display Range-1999 to 9999

Display Type4 Digit LED

Electrical ConnectionScrew Terminal

Frequency50 to 400 Hz

Impedance Input10 MΩ for 100 mV

1 MΩ for 1 or 10 Vdc

Input Current0 to 20 mA (5 Ω load)

IsolationPower to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test

Length127 mm

Linearization PointsUp to 10

NMRR60 dB

Number of Inputs1

Operating Temperature, Max55 °C

Operating Temperature, Min0 °C

Operating Temperature Note0 to 55°C (32 to 131°F) 90% RH non-condensing

Output DetailRelay: 250 Vac or 30 Vdc @ 3 A (resistive load)

configurable for on/off, PID, and ramp and soak Output 1: SPDT, can be configured as an alarm 1 output Output 2: SPDT, can be configured as an alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load)

continuous DC Pulse: Non-isolated

10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA

500 Ω max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output

PolarityUnipolar

Reading Rate3/sec

Relative Humidity0.9

Sampling Rate3 Hz (3 updates/second)

Sensor/Transmitter Power Note5 Vdc @ 40 mA

10 Vdc @ 60 mA (Optional In Place Of Communication)

Span Adjustment0.001 to 9999 counts

Step Response0.7 sec for 99.9%

Thermal Effects-1999 to 9999
