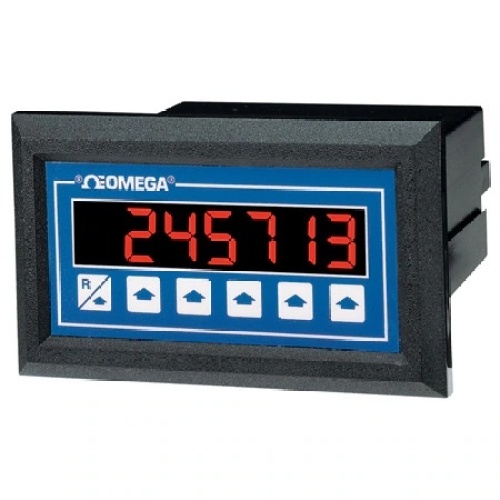

Omega DPF78 SCALEABLE METER/2 10A SPDT CE
Normally In Stock
Code: 776211
Omega DPF78 SCALEABLE METER/2 10A SPDT CE
Condition: New
Usually ships Same Day or Next Day$579.41
Sale Price
$482.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Frequency Input Ratemeter/Totalizer, Rate, Pulse, 110 Vac, 1-Input, 1/8 DIN, 10 kHz, 2 Relays, 4.5 Digit Single Display, DPF76 Series, Each
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Supply Voltage
110 VAC
Manufacturer
Omega Engineering
Component
Input Rate Meter/Totalizer
Features
NEMA 4X Front
Ratemeter/Totalizer
Remote or Front Panel Reset
Analog Output Optional
Accuracy± 0.1 %
Accuracy Detail±0.1% of rdg + 1 LSD
ApprovalsCE, RoHS Compliance
Control Output2 Relays
Cutout Dimensions3.62 x 1.73 in
Display ColorRed
Display TypeLED
Enclosure RatingsIP66, NEMA Type 4X
Form factor1/8 DIN
Front Panel Dimensions4.437 x 2.625 in
K-Factor0.0001 to 99999
MemoryEEPROM, 10 Years if Power is lost
Mounting OrientationPanel Mount
Number of Digits6
Number of Inputs1
Number of Relays1
Operating Temperature, Max54 °C
Operating Temperature, Min0 °C
Panel Depth4.06 in
Pulse Input NoteHigh Level Input Pulse: 4 to 30 Vdc
Low Level Input Pulse: 0 to 1 Vdc
Storage Temperature, Max93 °C
Storage Temperature, Min-40 °C
Supply Power TypeAC
Switch Rating5A @ 240 Vac
Switch TypeSPST
Switch Type NoteRated 5 A @ 240 Vac or 28 Vdc
SPST, selectable for NO or NC
relays latch or auto-recycle after 0.1 to 99.9 s
Weight2 lb
