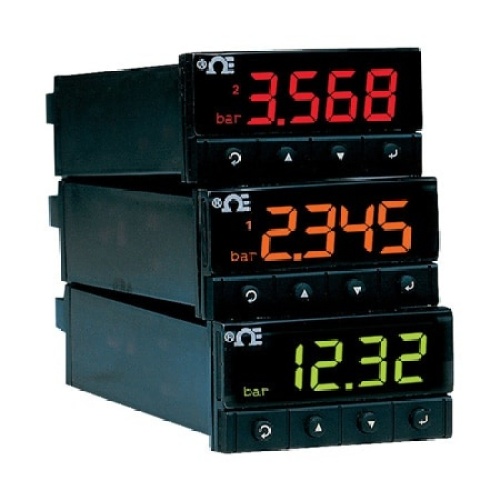

Omega DPI32 I/32 TEMP/PROC MONITOR ONLY
Normally In Stock
Code: 776177
Omega DPI32 I/32 TEMP/PROC MONITOR ONLY
Condition: New
Usually ships Same Day or Next Day$356.39
Sale Price
$296.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Digital Panel Meter, Universal I/P, Temperature, Process, 1/32 DIN, 3.5 Digit, 9-Segment 3 Color LED Display, AC Supply, DPi Series, Each
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP65
Component
Panel Meter
Manufacturer
Omega Engineering
(Instrument-Sensor) Supply Voltage
90 - 240 Vac
Features
Universal Inputs
User-Friendly, Simple to Configure
High Quality
Powerful Features
A/D ConversionDual slope
Additional Features 1Programmable 3 Color Display
ApprovalsUL, C-UL, UKCA, CE per 2014/35/EU
CMRR120 dB
ConfigurationSingle-ended
Control ActionAction: Reverse (heat) or direct (cool)
Control OutputSPDT Relay, Alarm
Cutout Dimensions45 mm
Digital FilterProgrammable
Display Range-1999 to 9999
Display Type4 Digit LED
Electrical ConnectionScrew Terminal
Frequency50 to 400 Hz
Impedance Input10 MΩ for 100 mV
1 MΩ for 1 or 10 Vdc
Input Current0 to 20 mA (5 Ω load)
IsolationPower to Input/Output: 2300 Vac per 1 minute test
For Low Voltage Power Option: 1500 Vac per 1 minute test
Power to Relay/SSR Output: 2300 Vac per 1 minute test
Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test
RS232/485 to Input/Output: 500 Vac per 1 minute test
Length127 mm
Linearization PointsUp to 10
NMRR60 dB
Number of Inputs1
Operating Temperature, Max55 °C
Operating Temperature, Min0 °C
Operating Temperature Note0 to 55°C (32 to 131°F) 90% RH non-condensing
Output DetailRelay: 250 Vac or 30 Vdc @ 3 A (resistive load)
configurable for on/off, PID, and ramp and soak
Output 1: SPDT, can be configured as an alarm 1 output
Output 2: SPDT, can be configured as an alarm 2 output
SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load)
continuous
DC Pulse: Non-isolated
10 Vdc @ 20 mA
Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA
500 Ω max
Output 3 Retransmission
Isolated Analog Voltage and Current
Current: 10 V max @ 20 mA output
Voltage: 20 mA max for 0 to 10 V output
PolarityUnipolar
Reading Rate3/sec
Relative Humidity0.9
Sampling Rate3 Hz (3 updates/second)
Sensor/Transmitter Power Note5 Vdc @ 40 mA
10 Vdc @ 60 mA (Optional In Place Of Communication)
Span Adjustment0.001 to 9999 counts
Step Response0.7 sec for 99.9%
Thermal Effects-1999 to 9999
