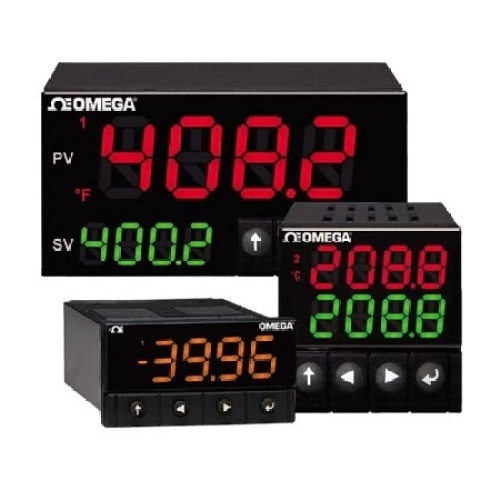

Strain &  Bridge Inputs, 6 Digit Display and Upgraded Platinum Software Now Available

Industry Leading Performance (20 Samples / Sec), High Accuracy

Up to 6 Programmable Control/Alarm/Re-transmission/Relay Outputs

Full Autotune PID with Fuzzy Logic Adaptive Control

A/D Conversion24-bit sigma delta

AccuracySelectable

Accuracy DetailProcess Voltage Accuracy: 0.03% Process Current Accuracy: 0.03% Thermocouple Accuracy: Type J: 0.4°C (0.7°F) Type K: 1.0°C (1.8°F), 0.4°C (0.7°F) Type T: 1.0°C (1.8°F), 0.4°C (0.7°F) Type E: -1.0°C (1.8°F), 0.4°C (0.7°F) Type R: 1.0°C (1.8°F), 0.5°C (0.9°F) Type S: 1.0°C (1.8°F), 0.5°C (0.9°F) Type B: 1.0°C (1.8°F), 0.5°C (0.9°F) Type C: 0.4°C (0.7°F) Type N: 1.0°C (1.8°F), 0.4°C (0.7°F) RTD Accuracy: Pt, 0.00385, 100 Ω, 500 Ω, 1000 Ω: 0.3°C (0.7°F) Pt, 0.003916, 100 Ω: 0.3°C (0.7°F) Pt, 0.00392, 100 Ω: 0.3°C (0.7°F) Thermistor Accuracy: 2252 Ω: 0.2°C (0.35°F) 5K Ω: 0.2°C (0.35°F) 10K Ω: 0.2°C (0.35°F)

Additional Features 1Programmable 3 Color Display

ApprovalsUL, cUL, CE, UKCA

CMRR120 dB

Control ModeRamp and Soak, Autotune, Adaptive Tune, PID Control, On-off control, Alarms, Remote Setpoint

Data Interface NoteConnection: USB: Female micro-USB Ethernet: Standard RJ45 USB: USB 2.0 host or device Ethernet Standards Compliance: IEEE 802.3 10/100 Base-T autoswitching, TCP/IP, ARP, HTTPGET

Digital FilterProgrammable

External Fuse RequiredExternal Fuse Required: Time-Delay, UL 248-14 Listed: 100 mA/250 V

400 mA/250 V (low voltage option)

Time-Lag, IEC 127-3 Recognized: 100 mA/250 V

400 mA/250 V (low voltage option)

Impedance InputInput Impedances: Process/Strain: 10M Ω for ± 100 mV, 1M Ω for other voltage ranges

Process Current: 5 Ω

Thermocouple: 10K Ω max

Auxiliary Input (Remote Setpoint): 3.5K Ω for 0 to 10V, 50K Ω for 0 to 1V, 50 Ω for current

Input ConfigurationDifferential

Input TypeThermocouple, RTD, Thermistor, mA, Voltage, Strain

Input Voltage-100 to 100 mV, -1 to 1 Vdc, -10 to 10 Vdc

IsolationISOLATION Power to Input/Output: 2300 Vac per 1 min test

1500 Vac per 1 min test (low voltage/power option) Power to Relays/SSR Outputs: 2300 Vac per 1 min test Relays/SSR to Relay/SSR Outputs: 2300 Vac per 1 min test RS232/RS485 to Inputs/Outputs: 500 Vac per 1 min test

Length127 mm

Current, Max4 to 20 mA, 0 to 24 mA scalable

Measurement TypeCurrent, Strain, Temperature, Voltage

Measuring RangeProcess Voltage: ± 50 mV, ± 100 mV, ± 1, ± 10 Vdc Process Current: Scalable within 0 to 24 mA Thermocouple: Type J: -210 to 1200°C Type K: -270 to -160°C, -160 to 1372°C Type T: -270 to -190°C, -190 to 400°C Type E: -270 to -220°C, -220 to 1000°C Type R: -50 to 40°C, 40 to 1788°C Type S: -50 to 100°C, 100 to 1768°C Type B: 100 to 640°C, 640 to 1820°C Type C: 0 to 2320°C Type N: 250 to -100°C, -100 to 1300°C RTD: Pt, 0.00385, 100 Ω, 500 Ω, 1000 Ω: -200 to 850°C Pt, 0.003916, 100 Ω: -200 to 660°C Pt, 0.00392, 100 Ω: -200 to 660°C Thermistor: 2252 Ω: -40 to 120°C 5K Ω: 30 to 140°C 10K Ω: 20 to 150°C

Number of Inputs1

Operating Temperature, Max50 °C

Operating Temperature, Min0 °C

PolarityBipolar

Ramp and SoakProfiling

Relative Humidity90% RH, non-condensing

Remote SetpointCurrent, Voltage

Resolution0.1° temperature

10 µV process

RTD Type100/500/1000 Ω Pt sensor, 2-, 3- or 4-wire

α= 0.00385, 0.00392 (100 Ω only), or α=0.003916 (1000 Ω only)

Sampling Rate20 Hz (20 updates/second)

Set Point AdjustmentMenu Configurable

Temperature StabilityTemperature Stability:RTD: 0.04°C/°C

Thermocouple @ 25°C (77°F): 0.05°C/°C (cold junction compensation)

Process/Strain: 50 ppm/°C

Thermistor Type2252 Ω, 5K Ω, 10K Ω

Warm-Up to Rated Accuracy30 min

Fully Configure all PLATINUM Functions/Parameters

Auto-Connect Through USB Channel

Load/Save PLATINUM Configuration Files

Performance Tracking (Charting) with Data Capture
