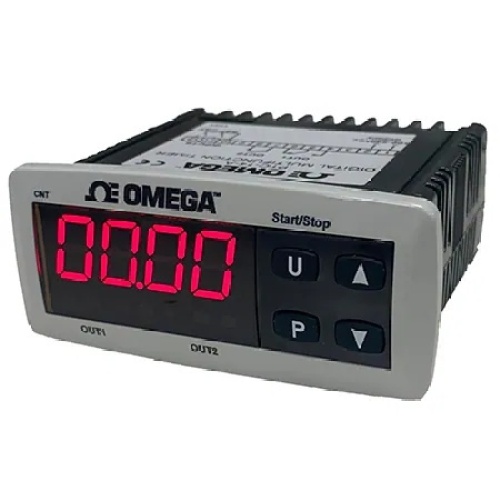

Omega PTC-14-A PANEL MOUNT DUAL DIGITAL TIMER 100-240VA
Normally In Stock
Code: 775744
Omega PTC-14-A PANEL MOUNT DUAL DIGITAL TIMER 100-240VA
Condition: New
Usually ships Same Day or Next Day$250.91
Sale Price
$209.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Digital Timer, 5 Programmable, Multi-Functions, Panel Mount, 4 Digit, Red Color LED Display, AC Supply, 2x Relay Alarm O/P, Each
Specifications
(Instrument-Sensor) IP Protection
IP65
Component
Timer
Manufacturer
Omega Engineering
(Instrument-Sensor) Supply Voltage
100 - 240 Vac
Features
Accuracy± 0.1 %
Contact Rating
OP1 16A at 250Vac/30Vdc (resistive) OP2 5A at 250Vac/30Vdc (resistive)
Control Output
Single pole changeover contact and single pole N/O contact
Cutout Dimensions
71 mm x 29 mm
Display Type
4 Digit Display
Electrical Life
100,000 operations
Enclosure Ratings
IP65
Enclosure Type
Panel mounting to DIN 43700, Self extinguishing plastic case Plug in connection terminals
Form Factor
DIN Rail
Frequency
50/60 Hz
Measurement Type
Time
Number Of Relays
2
Operating Temperature, Max
50 °C
Operating Temperature, Min
0 °C
Power Consumption
3 VA
Reset
~100 ms
Storage Temperature, Max
60 °C
Storage Temperature, Min
-20 °C
Timer Range
0.01 to 99.99sec, 00:01 to 99:59min 00:01 to 99:59hrs, 1 to 9999hrs
Weight
170 g
